Product Details:
Payment & Shipping Terms:
|
| DOT Format: | 240X160 | Outline (mm): | 77*53 |
|---|---|---|---|
| Controller: | UC1611s | Backlight Color: | White Color |
| IC Package: | Cog | Connection: | FPC-Soldering |
| Display Type: | FSTN | Power Supply: | 3.3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Backlight Current (Typ): | 51mA | View Angle Range: | No |
| Connector: | FFC-Connector | Appearance: | Black On White |
| Viewing Direction: | 12:00 | ||
| High Light: | Mono 240X160 Positive Graphic LCD,FSTN Transflective Positive Graphic LCD,51mA Backlight Transflective LCD Module |
||

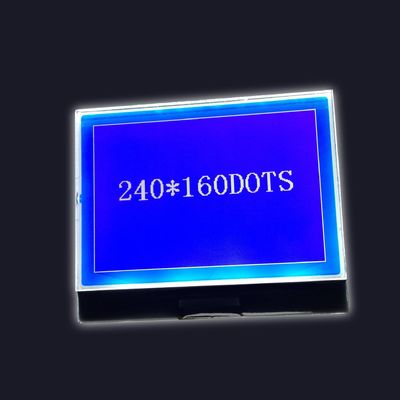

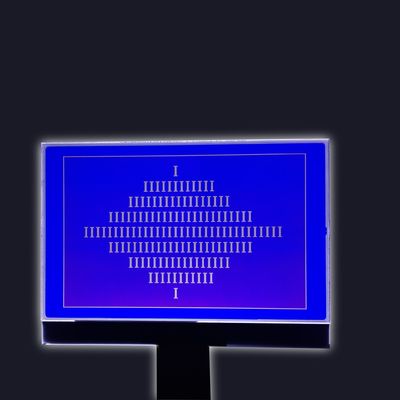

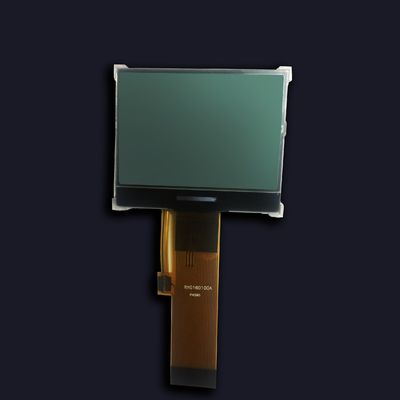

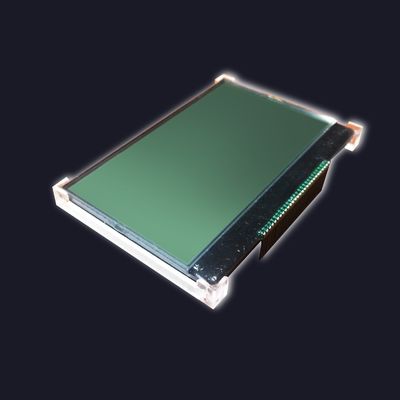

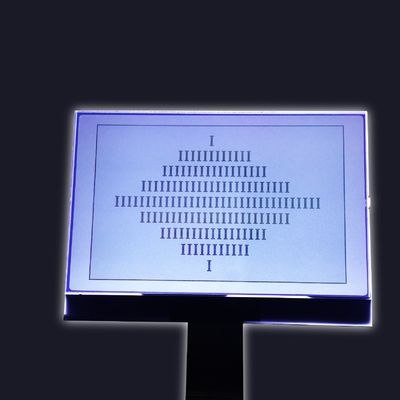

Mono 240x160 FSTN Transflective Positive Graphic LCD
Product Description
1. 240x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 240x160dots Graphic LCD Module |
| Model No. | RYB240160A |
| Dot Format | 240x160 |
| Outline (mm) | 77*53 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1611S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Features
1. Wide variety of off the shelf sizes and resolutions
2. Most products kept in stock and can ship same day
3. Ability to display fully changeable graphics
4. Sunlight readable
5. Low power consumption
6. Fully customizable
Our Factory
FAQ
Q.Do you provide free samples?
A:For first time cooperation, samples will be charged, the amount will be returned at the mass order stage. In regular cooperation, samples are free.Sellers keep the right for any change.
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
