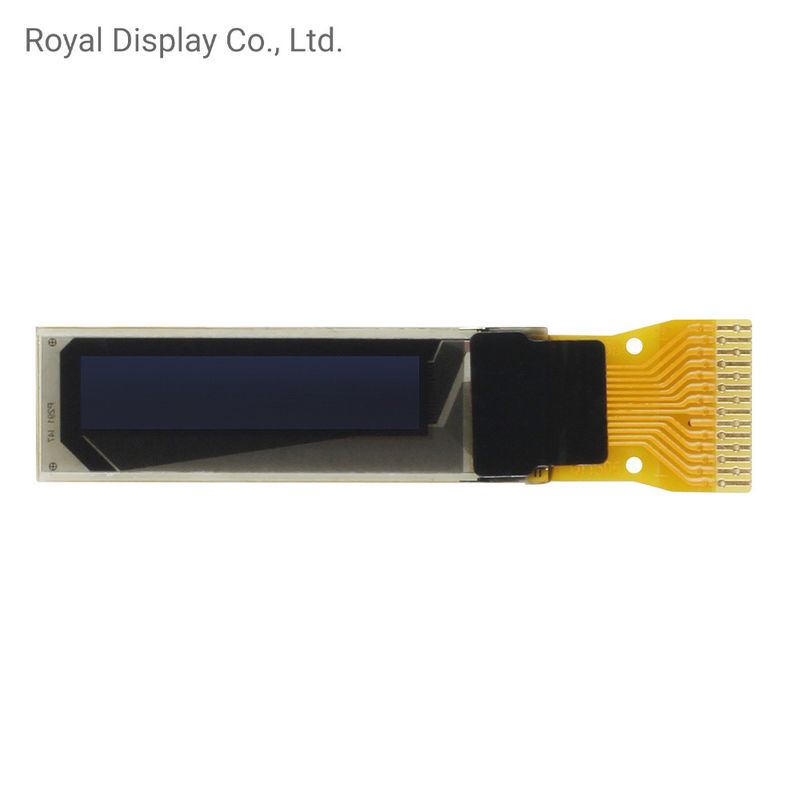

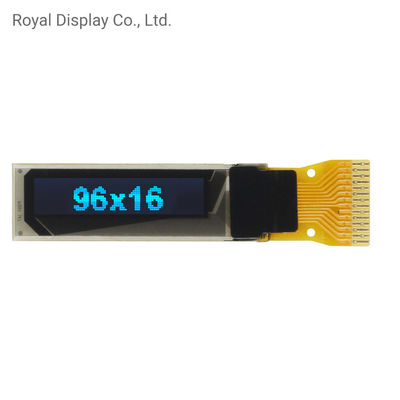

OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic

OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic
OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic

Large Image :  OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY-9616TSWCG02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Resolution: 96X16 Display Color: Blue/ White
Controller IC: SSD1316 Interface: I2c Port
High Light:

SSD1306 IC Graphic OLED Display

,

14 Pin Graphic OLED Display

,

96X16 Lcd Screen Module

PRODUCT DESCRIPTION

96x16 Graphic OLED Display | RY-9616TSWCG02

Module size: 26.3x8x1.2mm

Driver: SSD1306

Blue/White Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 2.6~3.5V OLED, RoHS Compliant.



Model Number RY-9616TSWCG02
Resolution 96*16
Display color White/Blue
Drive Duty 1/16 Duty
Dot Patch 0.18*0.2mm
Controller IC SSD1306
Outline Dimensions 26.3x8x1.2mm
Active Area 17.26x3.18mm
Interface IIC port
Pixel Size 0.16*0.18mm
Operating Temp. -20°C~+70°C
Storage Temp. -30°C~+80°C
Number of pins 14 pin





OLED ADVANTAGES

  • Thin (no backlight required)
  • Uniform brightness
  • Wide operating temperature range (solid-state devices with electro-optical properties that are independent of temperature)
  • Ideal for video with rapid switching times (μs)
  • High contrast (>2000:1)
  • Wide viewing angles (-180°) with no gray inversion
  • Low power consumption
  • Free consulting and 24x7 technical supported



APPLICATION



OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic 0





OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic 1



OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic 2







FAQ



Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.



Q: Can we visit your factory?
A: You are welcome to visit us.



Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.



Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.



Q: How much the transportation freight of the sample?
A: The freight depends on total weight and your address.



Q:How is the After-sales service?
A:(1)We have a huge team which is in charge of after-charges service.(2)We offer 24 hours online service to help buyers solving problems.(3)We offer buyers the market information updated regularly.



OLED Display 96X16 YG/Blue/White Lcd Screen Module SSD1306 IC 14 Pin Graphic 3
