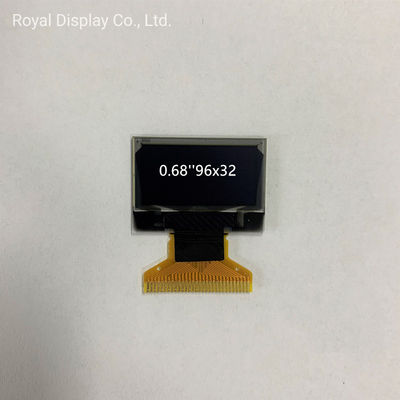

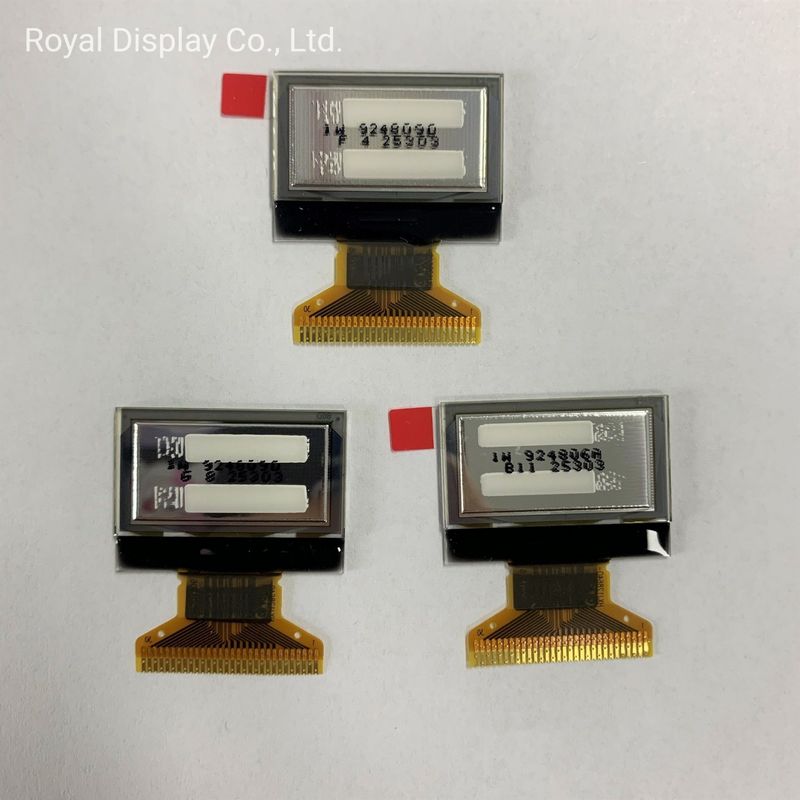

0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module

0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module
0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module 0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module

Large Image :  0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY-9632TSWEG01
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Resolution: 96X32 Display Color: White/Blue
Controller IC: SSD1306 Interface: I2c Port, Spi, Parallel
High Light:

Mono 96X32 OLED Display Module

,

SSD1306 OLED Display Module

,

0.68 Inch LCD Display Module

PRODUCT DESCRIPTION

64x48 Graphic OLED Display | RY-9632TSWEG01

Module size: 19.7x12.7x1.2mm

Driver: SSD1306

Blue/White Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 2.6~3.5V OLED, RoHS Compliant.



Model Number RY-9632TSWEG01
Resolution 96*32
Display color White/Blue
Drive Duty 1/64 Duty
Dot Patch 0.17*0.17mm
Controller IC SSD1306
Outline Dimensions 18.46*18.1*1.5mm
Active Area 16.3x5.42mm
Interface IIC port, SPI, Parallel, 4 wire
Pixel Size 0.15*0.15mm
Operating Temp. -20°C~+70°C
Storage Temp. -30°C~+80°C
Number of pins 25 pin







MORE INFORMATION ABOUT OLED DISPLAY

0.68 inch OLED Arduino is very popular application for the 0.68 inch OLED displays, it is also known for 0.68 inch OLED I2C Display, 0.68 inch OLED SPI Display or 0.68 inch OLED SPI Display. If need Arduino 0.68 inch OLED I2C example, you can buy the I2C 0.68 inch OLED Display Module to test at first, you can check the 0.68 inch OLED datasheet above, and we can provide the 0.68 inch OLED I2C Arduino library for your projects.





APPLICATIONS



0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module 0






FACTORY

0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module 1









FAQ



Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.



Q: Can we visit your factory?
A: You are welcome to visit us.



Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.



Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.



Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.



0.68 Inch SPI Mono White/Blue/YG 7.5V 96X32 25 Pin SSD1306 OLED Display Module 2
