Product Details:
Payment & Shipping Terms:
|
| Resolution: | 128X64 | Display Color: | White |
|---|---|---|---|
| Controller IC: | SSD1306 | Interface: | I2c Port, Spi, Parallel |
| Highlight: | 1.3 Inch OLED Display Module,128x64 Iic OLED Display Module,SSD1306 Controller Monochrome OLED Display |
||
Module size: 27.50 x 27.8mm
Driver: SSD1306
ABOUT OLED DISPLAY

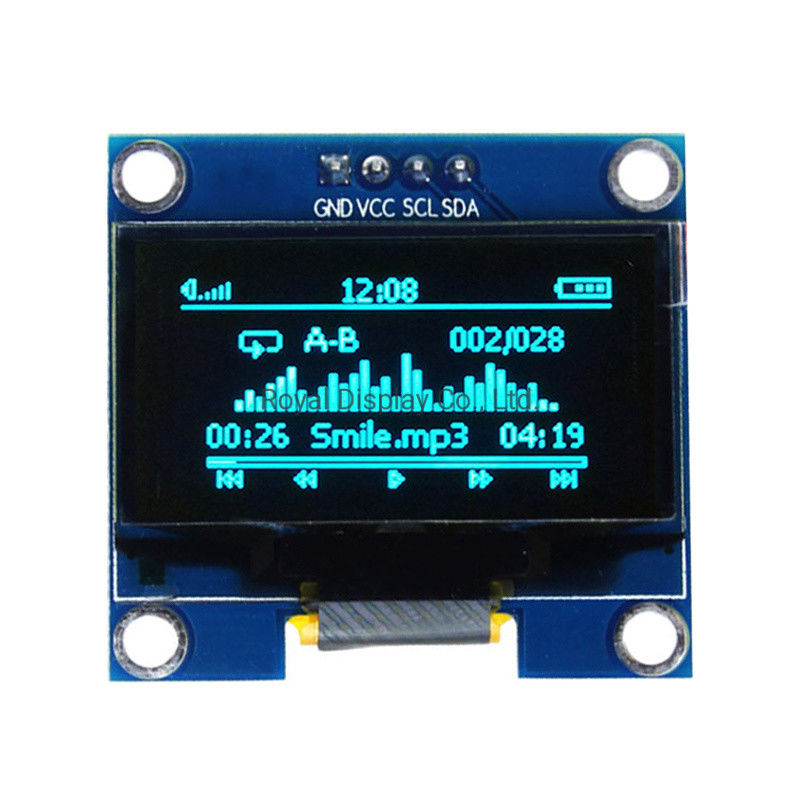

RYO12864-108-KSWG7P013 is the graphic OLED display module,attached with breakout board,made of 128x64 individual Blue OLED pixels,diagonal is only 1.3 inch.The controller ic SH1106, communicates via 4-wire SPI serial or I2C serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's 4-wire SPI serial interface with pin header connection by default.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

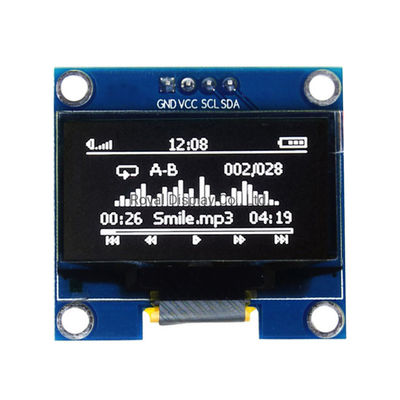

1.3 Inch IIC interface OLED Screen White Color
| Dot Matrix: | 128X64 |
| Dots Size: | 0.21 (W) x 0.21 (H) mm |
| Dots Pitch: | 0.23 (W) x 0.23 (H) mm |
| Aperture Rate: | 83.3% |
| IC: | SH1106 |
| Color: | White & Blue |
| Active Area: | 29.42 (W) x 14.7 (H) mm |
| View Area: | 34.5(W)x23.0(H) mm |
| Module Size: | 35.4(W)x33.5(H)x2.7Max(T) mm |
| Place of Origin: | China(mainland) |
| Delivery: | Samples: 1-5 working days after payment confirmed |
| Payment Terms: | T/T, Weatern Union, Paypal |
| MOQ: | 1 Piece |
APPLICATIONS
PROCESS LINES
FAQ
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.
Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
