0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module

0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module
0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module 0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module

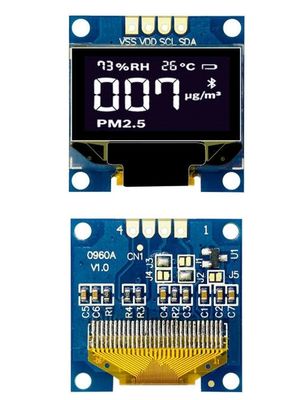

Large Image :  0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYO12864-108-KSWG7P096
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Resolution: 128X64 Display Color: White
Controller IC: SSD1306 Interface: I2c Port, Spi, Parallel
High Light:

0.96 Inch LCD Driver Board

,

128X64 LCD Driver Board

,

Spi LCM Display Module

PRODUCT DESCRIPTION

128x64 Graphic OLED Display | RYO12864-108-KSWG7P096

Module size: 27.50 x 27.8mm

Driver: SSD1306

Blue+Yellow Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 3V OLED, RoHS Compliant.



Model Number RYO12864-108-KSWG7P096
Resolution 128*64
Display color White
Drive Duty 1/64 Duty
Dot Patch 0.17*0.17mm
Controller IC SSD1306
Outline Dimensions 27.5*27.8*2.6mm
Active Area 21.74*11.20mm
Interface IIC port, SPI, Parallel
Pixel Size 0.15*0.15mm
Operating Temp. -20°C~+70°C
Storage Temp. -30°C~+80°C





MORE INFORMATION ABOUT OLED DISPLAY

0.96 inch OLED Arduino is very popular application for the 0.96 inch OLED displays, it is also known for 0.96 inch OLED I2C Display, 0.96 inch OLED SPI Display or 0.96 inch OLED 128×64 SPI Display. If need Arduino 0.96 inch OLED I2C example, you can buy the I2C 0.96 inch OLED Display Module to test at first, you can check the 0.96 inch OLED datasheet above, and we can provide the 0.96 inch OLED I2C Arduino library for your projects.




PRODUCT APPLICATION

Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.


0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module 0



OUR FACTORY

0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module 1



0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module 2





FAQ



Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.



Q: Can we visit your factory?
A: You are welcome to visit us.



Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.



Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.



Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.



Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.





0.96 Inch 128X64 LCD OLED Interface Driver Board Spi LCM Display Module 3
