0.96 inch Monochrome 128x64 Micro Panel Screen LCD SSD1306 SPI
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYO12864-108-KSWG7P096 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Resolution: | 128X64 | Display Color: | White |
|---|---|---|---|
| Controller IC: | SSD1306 | Interface: | I2c Port, Spi, Parallel |
| Highlight: | 128x64 Micro Panel Screen,SSD1306 Micro Panel Screen,SPI Monochrome OLED Display |
||
Product Description
PRODUCT DESCRIPTION

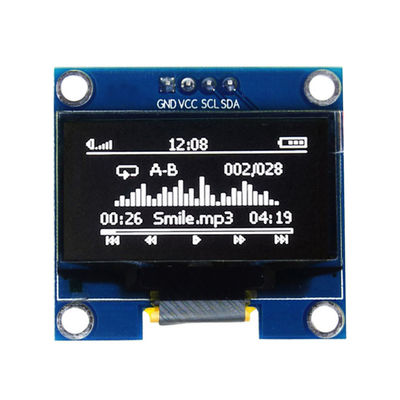

128x64 Graphic OLED Display | RYO12864-108-KSWG7P096
Module size: 27.50 x 27.8mm
Driver: SSD1306
Blue+Yellow Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 3V OLED, RoHS Compliant.
| Model Number | RYO12864-108-KSWG7P096 |
| Resolution | 128*64 |
| Display color | White |
| Drive Duty | 1/64 Duty |
| Dot Patch | 0.17*0.17mm |
| Controller IC | SSD1306 |
| Outline Dimensions | 27.5*27.8*2.6mm |
| Active Area | 21.74*11.20mm |
| Interface | IIC port, SPI, Parallel |
| Pixel Size | 0.15*0.15mm |
| Operating Temp. | -20°C~+70°C |
| Storage Temp. | -30°C~+80°C |
PRODUCT APPLICATION
Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
FAQ
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.
Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
