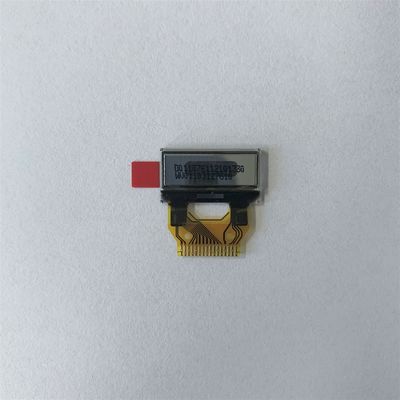

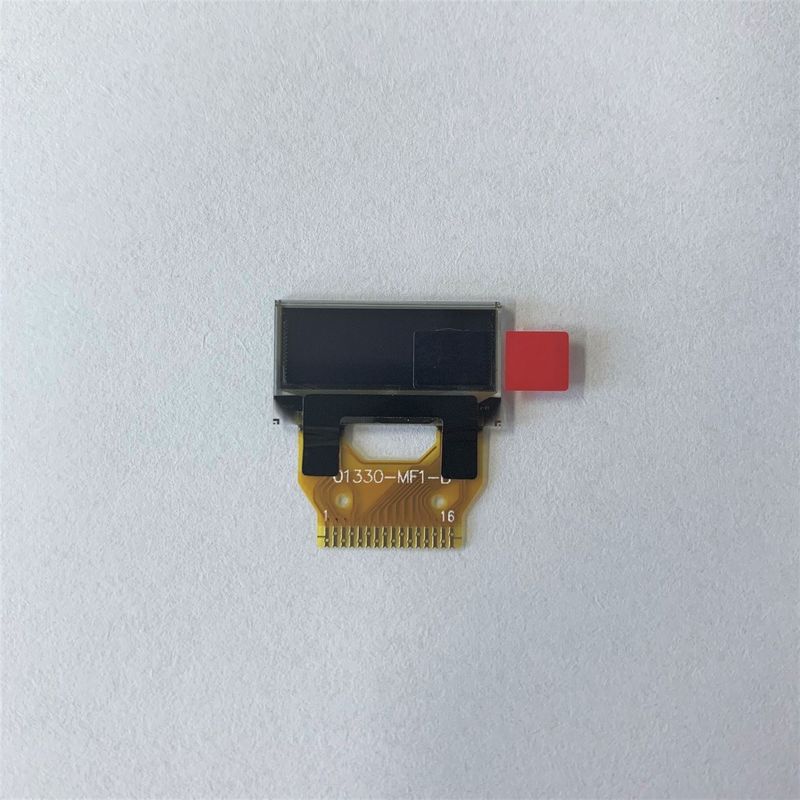

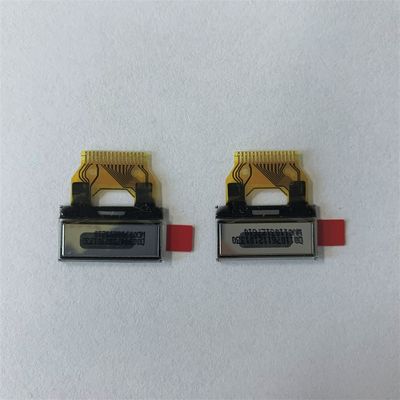

96x32 Sh1106 0.68'' OLED Display Dots Matrix Monochrome Screen Modul OLED Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | VGM096032A4W01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Resolution: | 96X32 | Display Color: | White |
|---|---|---|---|
| Controller IC: | Sh1106g | Interface: | I2c Port, Spi, Parallel |
| Highlight: | 96x32 OLED Display Module,Sh1106 OLED Display Module,0.68'' OLED Screen Module |
||
Product Description
PRODUCT DESCRIPTION
96X32 Graphic OLED Display | VGM096032A4W01
Module size: 19.25(W)×20.86(H)×1.28 (T)
Driver: SH1106G
| Model Number | VGM096032A4W01 |
| Resolution | 96*32 |
| Display color | White |
| Drive Duty | 1/32 Duty |
| Dot Patch | 0.17*0.17mm |
| Controller IC | SH1106G |
| Outline Dimensions | 19.25(W)×20.86(H)×1.28 (T) |
| Active Area | 16.3(W)×5.42(H) |
| Interface | IIC port, SPI, Parallel |
| Pixel Size | 0.15*0.15mm |
| Operating Temp. | -20°C~+70°C |
| Storage Temp. |
-30°C~+80°C |
MORE INFORMATION ABOUT OLED DISPLAY
0.96 inch OLED Arduino is very popular application for the 0.96 inch OLED displays, it is also known for 0.96 inch OLED I2C Display, 0.96 inch OLED SPI Display or 0.96 inch OLED 128×64 SPI Display. If need Arduino 0.96 inch OLED I2C example, you can buy the I2C 0.96 inch OLED Display Module to test at first, you can check the 0.96 inch OLED datasheet above, and we can provide the 0.96 inch OLED I2C Arduino library for your projects.
APPLICATION
Want to Know more details about this product
