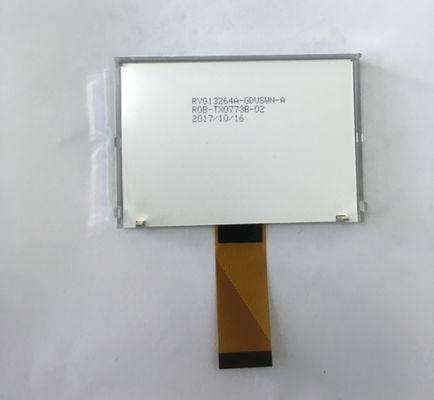

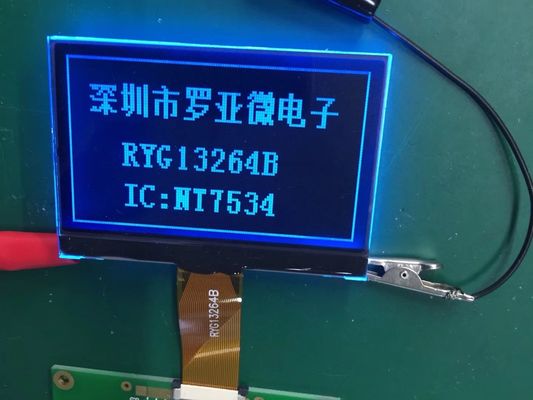

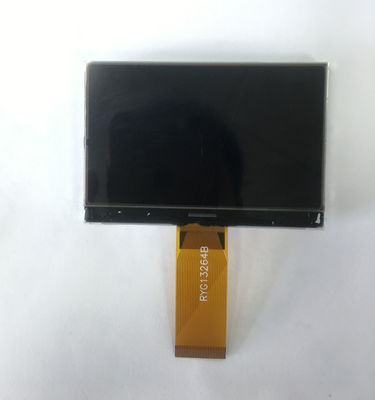

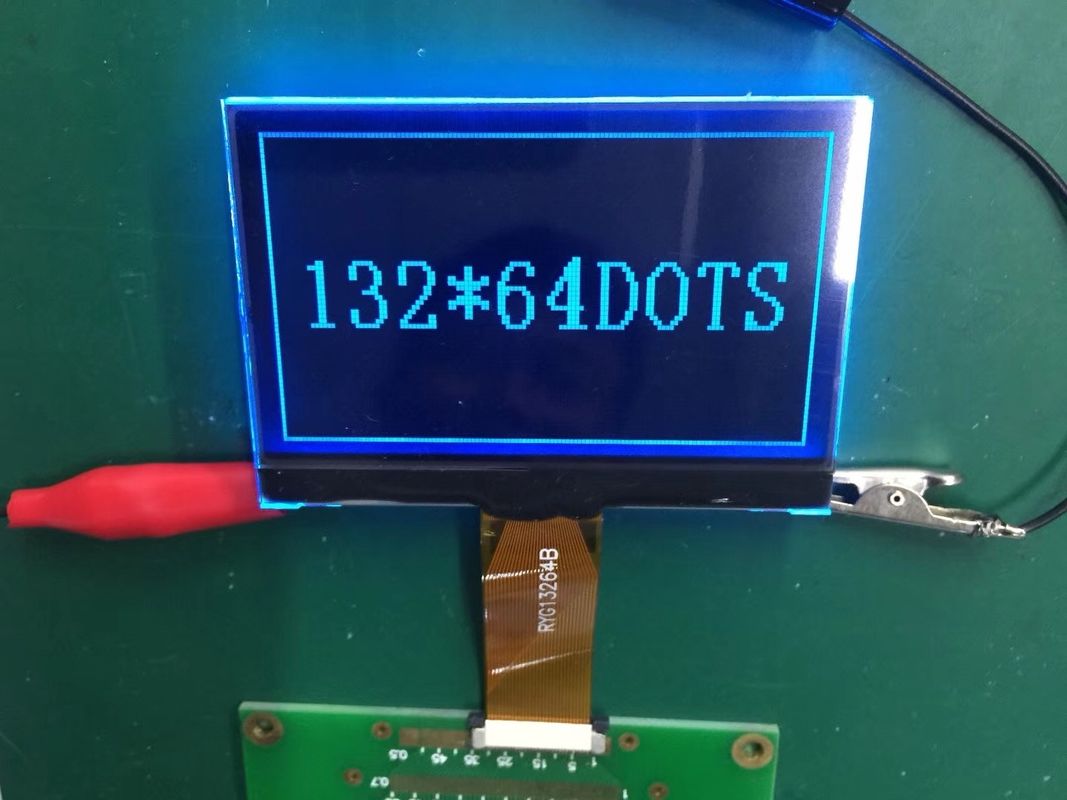

DFSTN Transmissive 132x64 Dots COG Monochrome Graphic LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG13264B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 30k/Month |
|
Detail Information |
|||
| Product Name: | Graphic 128X64dots LCD Display Module | Model No.: | RYG13264B |
|---|---|---|---|
| Display Format: | 128x64dots | LCD Type: | DFSTN-Negative |
| LED Backlight: | Blue | Viewing Angle: | 12 O' Clock |
| Controller IC: | NT7534 | Connector: | COG+FPC |
| Operating Temp.: | -20º C~70º C | Storage Temp.: | -30º C~80º C |
| Drive Method: | 1/65duty, 1/9bias | ||
| Highlight: | DFSTN Monochrome Graphic LCD Module,132x64 Dots Graphic LCD Module,COG Monochrome LCD Display Module |
||
Product Description
COG 132x64 Graphic DFSTN monochrome LCD Display
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 132x64dots LCD Module |
| Model No. | RYG13264B |
| Dot Format | 132x64 |
| Outline (mm) | 73.2*49.8 |
| Viewing Area(mm) | 12:00 |
| LCD Type | DFSTN, Transmissive, Negative |
| Backlight | Blue |
| Driver IC | NT7534 |
| Drive method | 1/65Duty, 1/9Bias |
| Connector | COG+FPC |
| Power supply | 3V |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
PRODUCT DETAILS
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
- Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report →Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
