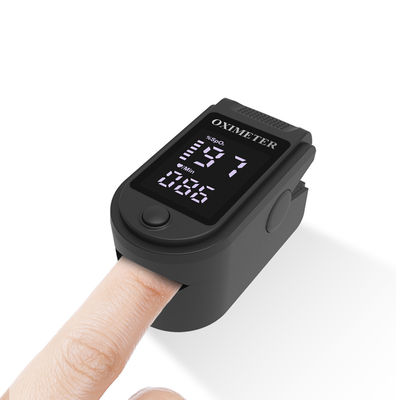

0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter

0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter
0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter 0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter

Large Image :  0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter

Product Details:
Place of Origin: CHINA
Certification: SGS ROHS
Model Number: RYO004
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 10-15 Working Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Model No.: RYO004 Display Resolution: 128x64 Dots
Display Color: White Outline Dimensions: 27.5*27.8*2.6mm
Controller IC: SSD1306 Dot Patch: 0.17*0.17mm
Interface: I2c Port, Spi, Parallel Active Area: 21.74*11.20mm
Pixel Size: 0.15*0.15mm Operating Temp.: -20°C~+70°C
Storage Temp.: -30°C~+80°C Usage: Outdoor, Indoor, Adertising Display, Audio, Automotive Control Panels, Medical Devices
High Light:

250bpm Fingertip Oxygen Meter


100mA Fingertip Oxygen Meter


0.96in SpO2 Finger Pulse Oximeter

Mini Finger Pulse Oximeter Blood Saturation Fingerstrip Oxygen Meter

Display mode
0.96" Dual-color OLED display(blue and yellow)
Screen resolution
SpO2 measuring range
0%~100%, (the resolution is 1%).
70%~100%: ±2%, Below 70% unspecified.
PR measuring range
30bpm~250bpm, (the resolution is 1bpm)
±2bpm or ±2% (whichever is greater)
Measurement performance in weak filling condition
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2%
(whichever is greater).
Resistance to surrounding light
The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less
than ±1%.
Power consumption
no more than 100mA
DC 3.6V~4.2V
Power supply
3.7V rechargeable lithium battery × 1
Battery working hour
20 hours in theoretical
Battery service life
no less than 500 times of charge and discharge
Safety type
Internally powered equipment, Type BF applied part





Figure pulse oximeter The oximeter monitors fluctuations in blood oxygen saturation in small volume. Using fingers to care family health is easier than going to hospital.


-OLED display: Dual Color OLED display. Better shows the data.

-Multi-direction display: Rotatable multidirectional display. 4 directions, 6 modes, allow you to view your results in any direction.

-Alarm function: Set the alarm and beep according to your needs. There will be a warning once the measured values go beyond the setting. Know it immediately.

-With case: Small in volum, light in weight, convenient to carry. With a landyard and carrying case, convenient to use and to storage

-Long battery life: 1) Low-power consumption, continuously work for 6 hours.

2)In the absence of signal, the product will be in after 8 seconds to enter standby state.

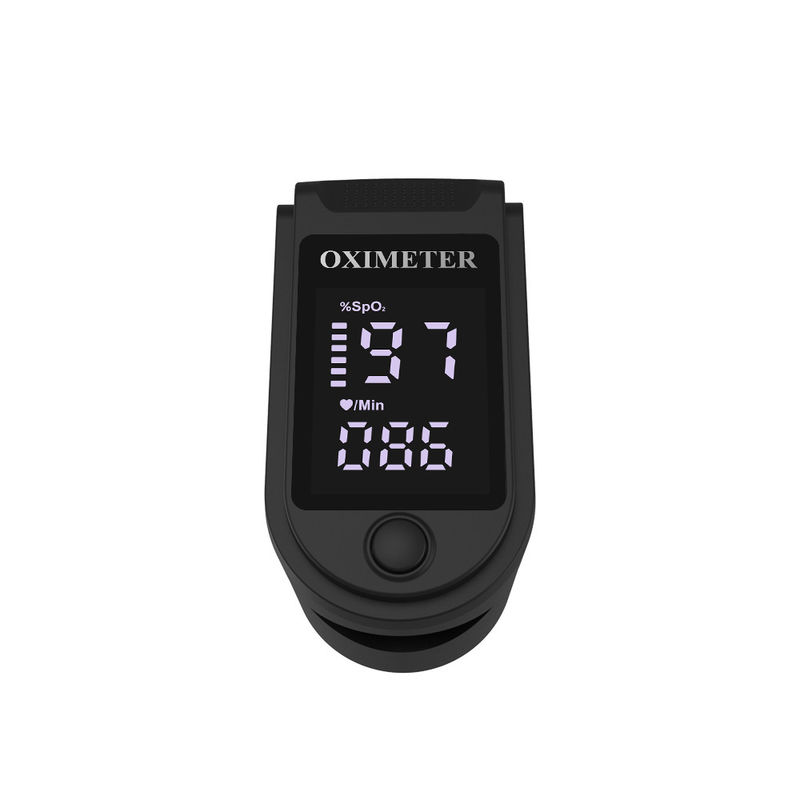

0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter 0


1.Integrated with SpO2 probe and processing display module

2.Small in volume,light in weight and convenient in carrying

3.Operation of the product is simple ,low power consumption

4.SpO2 value display

5.Pulse rate value display, bar graph display

6.Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage 7.Various color of cover can be selected

0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter 1



1.Small order would be accepted.

2.Mass production lead time would be guaranteed.

3.Each order will have 0.2%-0.5% spare.

4.Even customers do not have a cooperation with us, we aslo can provide technical services.

5.If mass production has any quality problem, customer can return it.


0.96in OLED Display 250bpm 100mA Fingertip Oxygen Meter 2
