Product Details:
Payment & Shipping Terms:
|
| Model No.: | RYO12864-108-KSWG7P096 | Resolution: | 128x64 Dots |
|---|---|---|---|
| Display Color: | White | Controller IC: | SSD1306 |
| Interface: | I2c Port, Spi, Parallel | Outline Dimensions: | 27.5*27.8*2.6mm |
| Active Area: | 21.74*11.20mm | Dot Patch: | 0.17*0.17mm |
| Pixel Size: | 0.15*0.15mm | Operating Temp.: | -20°C~+70°C |
| Storage Temp.: | -30°C~+80°C | Usage: | Outdoor, Indoor, Adertising Display, Audio, Automotive Control Panels, Medical Devices |
| Highlight: | SSD1306 OLED LCD Display,0.96 Inch OLED LCD Display,128x64 Graphic OLED Display |
||
128x64 Graphic OLED Display | RYO12864-108-KSWG7P096
Module size: 27.50 x 27.8mm
Driver: SSD1306
Blue+Yellow Pixels, 8-bit Parallel; I2C; 3/4-wire SPI interface, Wide Temp (-40° to +70° operating/-40° to +85° storage),
3V OLED, RoHS Compliant.
| 1 | Model Number | RYO12864-108-KSWG7P096 |
| 2 | Resolution | 128*64 |
| 3 | Display color | White |
| 4 | Drive Duty | 1/64 Duty |
| 5 | Dot Patch | 0.17*0.17mm |
| 6 | Controller IC | SSD1306 |
| 7 | Outline Dimensions | 27.5*27.8*2.6mm |
| 8 | Active Area | 21.74*11.20mm |
| 9 | Interface | IIC port, SPI, Parallel |
| 10 | Pixel Size | 0.15*0.15mm |
| 11 | Operating Temp. | -20°C~+70°C |
| 12 | Storage Temp. | -30°C~+80°C |
| 13 | Number of pins | 4 pin |
MORE INFORMATION ABOUT OLED DISPLAY
OLED is an organic light-emitting diode with the characteristics of spontaneous light, wide viewing, wide temperature range, high contrast, low power consumption, high reaction rate and visibility in sunlight. It is a new generation of display technology.
We have used Taiwan OLED display glass for design, and produce products with Full-Automatic Production Line. Our solution make the OLED product perfect for suing industrial products, whose working environment is hard. We then carry out the OLED display bonding processing in our factory in China. We are dedicated to providing top quality display products for industrial display solution to improve the end client users' experience.

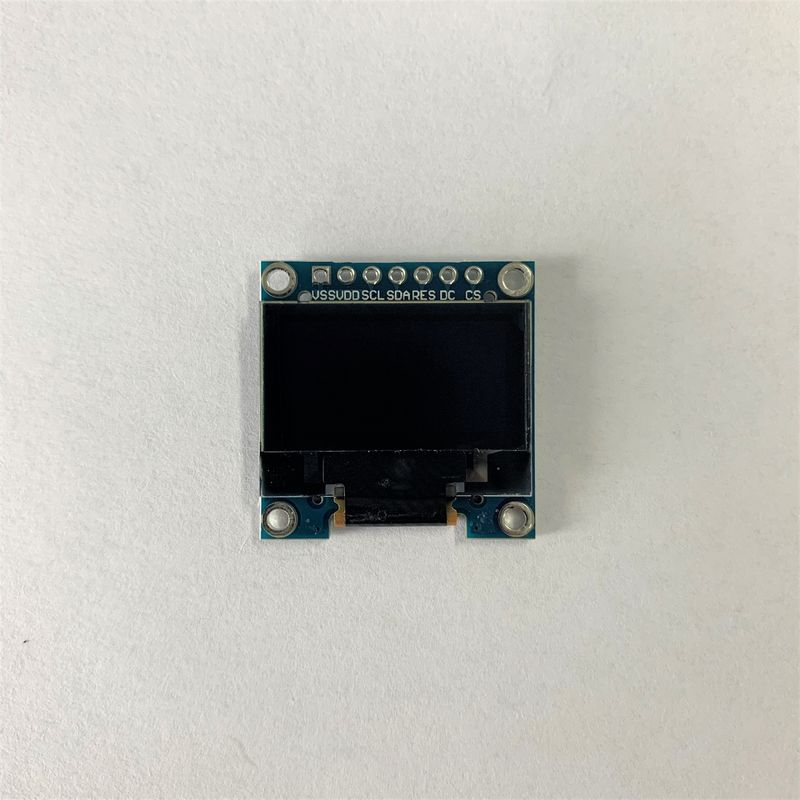

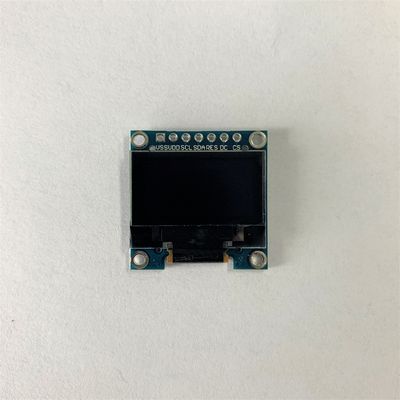

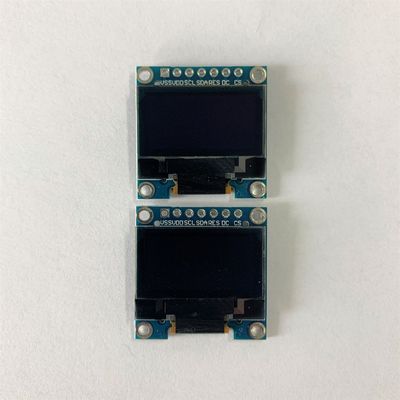

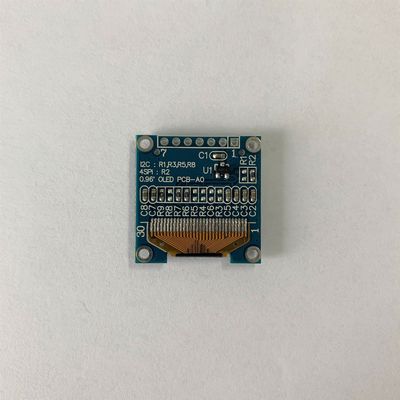

DETAILED IMAGES
PRODUCT APPLICATION
Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
OUR SERVICE ADVANTAGES
1.Small order would be accepted.
2.Mass production lead time would be guaranteed.
3.Each order will have 0.2%-0.5% spare.
4.Even customers do not have a cooperation with us, we aslo can provide technical services.
5.If mass production has any quality problem, customer can return it.
FAQ
1. What is the MOQ?
Re: No MOQ for samples,different MOQ requirements for bulk order.
2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.
3. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.
4. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
