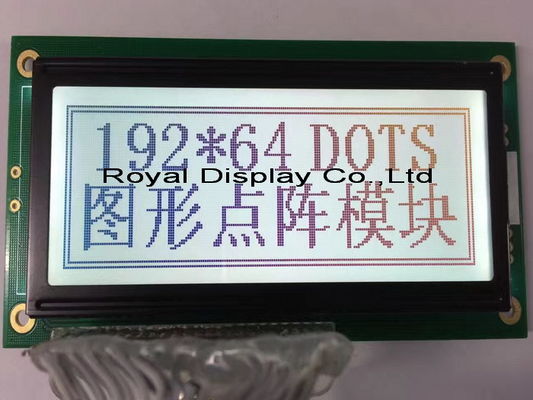

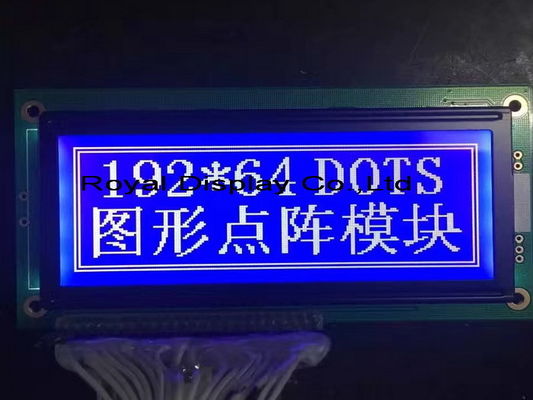

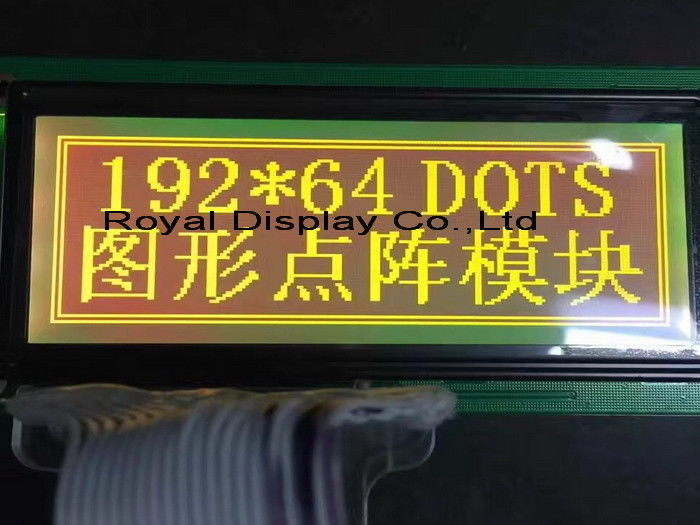

192X64 Stn FSTN Graphic LCD Module

192X64 Stn FSTN Graphic LCD Module
192X64 Stn FSTN Graphic LCD Module 192X64 Stn FSTN Graphic LCD Module 192X64 Stn FSTN Graphic LCD Module

Large Image :  192X64 Stn FSTN Graphic LCD Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP19264A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 10k/Month
Detailed Product Description
Product Name: Industrial Application 19264 Graphic COB LCD Module RYP19264A Model No.: RYP19264A
LCD Type: FSTN Postive Dot Format: 192X64
LED Backlight: White Y/G Viewing Angle: 6 O' Clock
Controller: S6B0108 Operating Temp: -20º C~70º C
Highlight:

Lcd Graphic Display Module

,

Monochrome Graphic Display



Monochrome LCD Display Module 192X64 Stn FSTN Graphic LCD with White Backlight



General Specifications



1. 192x64 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Display Specifications



 Item  Description
 Product Name  192X64 dots Graphic LCD Module
 Model No.  RYP19264A
 Dot Format  192x 64
 LCD Type  FSTN-Positive, STN-Blue, STN-YG
 Outline Dimension(mm)  130X65
 Assem. Size(mm)  130.0 x 53.0
 Viewing Area(mm)  104.0 x 39.0
 Pixel Size( mm)  0.468 x 0.468
 Viewing Angle  6 O' clock
 Backlight  White or Y/G LED backlight
 Driver IC  S6B0108
 Power supply  3V or 5V
 Interface  Parallel
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C



192X64 Stn FSTN Graphic LCD Module 0



Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

192X64 Stn FSTN Graphic LCD Module 1

Features

Transmissive, Transflective and Reflective Mode

Wide Operation & Storage temperature range

Duty Ratio: up to 1:240

support gray scale display


FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. How to order lcd?



A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1) Product information-Quantity, part number



2) Delivery time required.



3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4) Forwarder's contact details if you have any in China.



Q3. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately



Q4. How long can I expect to get the sample?



A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.





Custom LCD/LCM are available



192X64 Stn FSTN Graphic LCD Module 2
