RYD2119TM-01 Graphic LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYD2119TM-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 10-15 Working Days |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Model No.: | RYD2119TM-01 | LCD Type: | TN, Positive, Transmissive |
|---|---|---|---|
| Viewing Angle: | 6 O' Clock | LED Backlight: | Edge White Or Green |
| Connector: | Zebra | Sunlight Readable: | Yes |
| Power Supply: | 3V | Operating Temp.: | -0º C~50º C |
| Storage Temp.: | -10º C~60º C | Support Font: | English |
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description
Health No Touch Infra Red Laser Themometer Gun Electronic LCD Screen
Display Specifications
| Model No. | RYD2119TM-01-01 |
| Outline (mm) | 31*26 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN, Positive, Transmissive |
| Backlight | Edge White or Green |
| Connector | Zebra |
| Viewing Angle | 6:00 |
| Power supply | 3V |
| Operating Temp | -0º C~50ºC |
| Storage Temp | -10º C~60ºC |

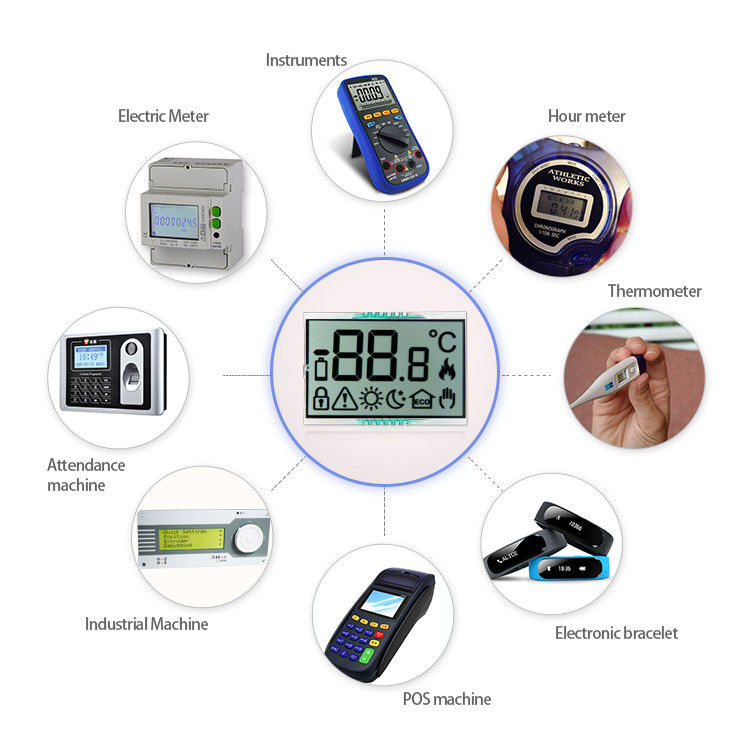

Typical Applications
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .
You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A: Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1) Product information-Quantity, part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A: The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Custom LCD/LCM are available
Custom Made Project Order Flow
1. Enquiry
Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).
2. Counter drawing
We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.
3. Tooling samples
After drawing approval, tooling samples will be finished around 30 days
4. Mass production
After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply siutuation.
