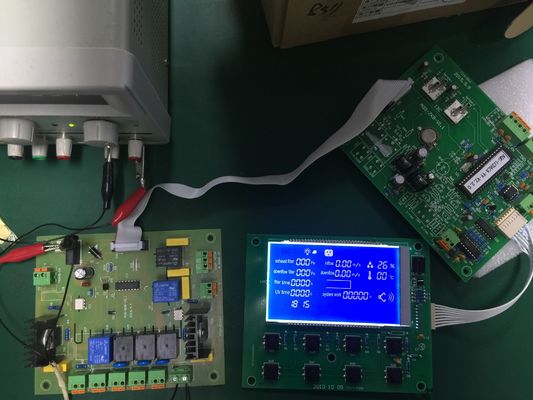

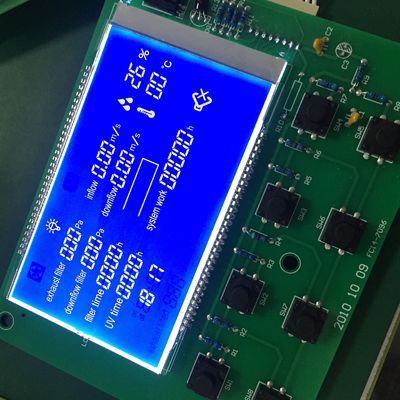

RYD2075BV01-A Graphic Lcd Display STN Blue Screen With Backlight High Brightness
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYD2075BV01-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Product Name: | Graphic LCD 128X64dots STN Gray Blue Film LCD Display Module | Model No.: | RYD2075BV01-A |
|---|---|---|---|
| Display Mode: | STN-Blue, Transmissive, Posiive | LED Backlight: | Blue |
| Display Format: | 128x64dots | Viewing Angle: | 6 O' Clock |
| Controller IC: | ST7565R | Operating Temp: | -20º C~70º C |
| Connector: | FPC | Sunlight Readable: | Yes |
| Backlight Current (Typ): | 45mA | Connection: | FPC-Soldering |
| Interface: | Serial/parallel | ||
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description
Graphic Lcd Display Gray Color Screen With Backlight High Brightness
General Specifications
1. Display Format 128x64 dots
2. Parallel interface
3. 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
Display Specifications
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format(dot) | 128x64 |
| Outline Dimension(mm) | 40.8x34.8 |
| VA Size(mm) | 37.7X25.1 |
| AA Size( mm) | 34.5x21.7 |
| Viewing Angle | 6 O' clock |
| LCD Mode | STN-Blue |
| Backlight | Blue |
| Driver IC | ST7565R |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Transmissive, Transflective and Reflective Mode
Wide Operation & Storage temperature range
Duty Ratio: up to 1:240
support gray scale display
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately.
Custom LCD/LCM are available
