White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG240160M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | RYG240160M COG Graphic LCD Module FSTN | Model No.: | RYG240160M |
|---|---|---|---|
| Dot Format: | 240X160 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | Red Or Green | Operating Temp: | -20º C~70º C |
| LCD Type: | FSTN Postive | Driver: | UC1698u |
| Interface: | Serial/parallel | ||
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description

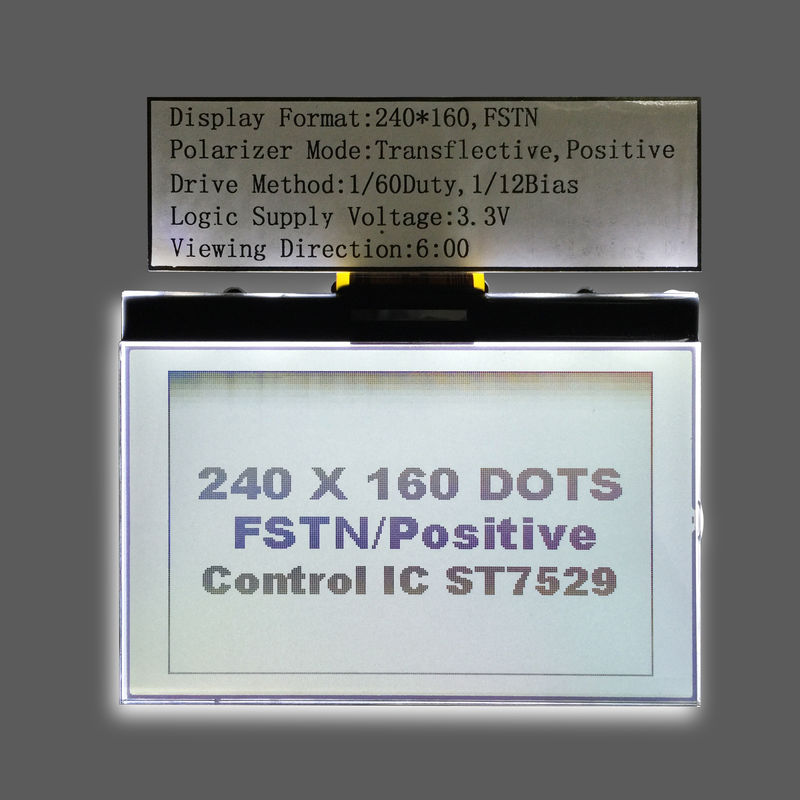

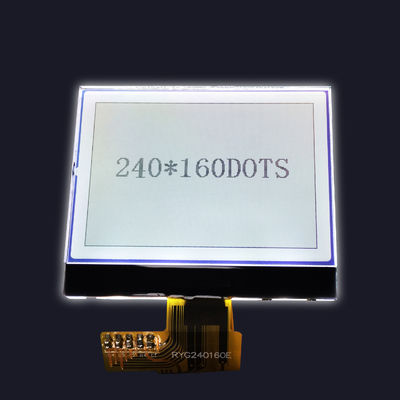

White Backlight FSTN 240 * 160 Dots Graphic Matrix Character LCD Display
Display Specifications
| Item | Description |
| Product Name | 240x160 dots Graphic LCD Module |
| Model No. | RYG240160M |
| Dot Format | 240 x 160 |
| Outline Dimension(mm) | 60*51.7 |
| Viewing Area(mm) | 56*38.7 |
| Pixel Size( mm) | 0.196 x 0.196 |
| Viewing Angle | 6 O' clock |

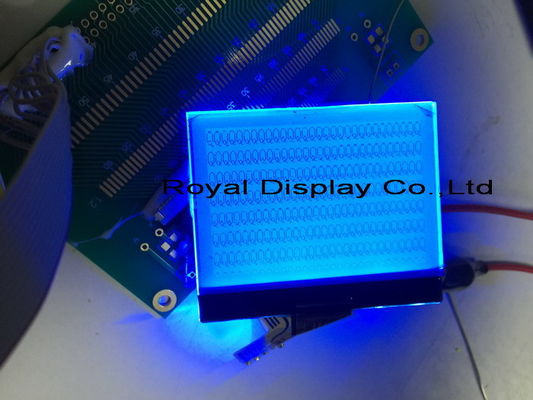

| LCD Type | FSTN-Positive, STN-Blue, STN-YG |

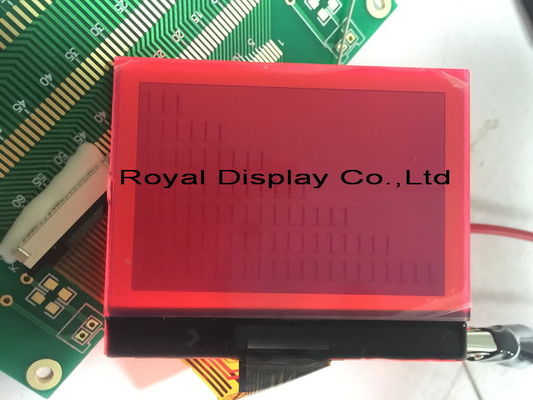

| Backlight | Red or Green LED backlight |
| Driver IC | UC1698u |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately
Custom LCD/LCM are available
