FSTN Postive 320x240 Graphic LCD Module RYG320240A

FSTN Postive 320x240 Graphic LCD Module RYG320240A
FSTN Postive 320x240 Graphic LCD Module RYG320240A FSTN Postive 320x240 Graphic LCD Module RYG320240A FSTN Postive 320x240 Graphic LCD Module RYG320240A

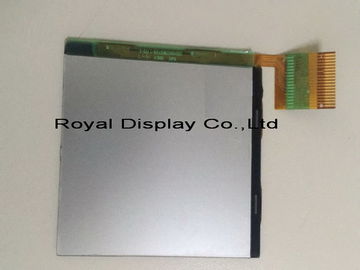

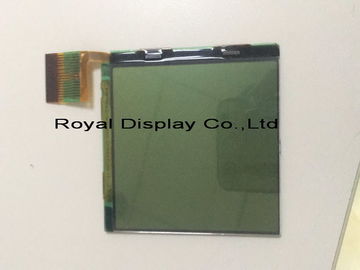

Large Image :  FSTN Postive 320x240 Graphic LCD Module RYG320240A

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG320240A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 10k/Month
Detailed Product Description
Product Name: Graphic LCD Module For Industrial Application RYG320240A 320x240 Dots 100% Replace HANTRONIX HDG320240 Model No.: RYG320240A
Dot Format: 320X240 Viewing Angle: 6 O' Clock
LED Backlight: White Operating Temp: -20º C~70º C
LCD Type: FSTN Postive
High Light:

320x240 Graphic LCD Module

,

FSTN Postive Graphic LCD Module

,

RYG320240A





Graphic LCD Module For Industrial Application RYP320240A 320x240 Dots 100% replace HANTRONIX HDG320240



1. 320x240 dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4.  STN-blue, STN-Positive display results as option



Item Description
Product Name 320X240 dots Graphic LCD Module
Model No. RYG320240A
Dot Format 320x 240
Outline Dimension(mm) 88.3x69.1
Assem. Size(mm)     /
Viewing Area(mm) 79.8 x 57.85
Pixel Size( mm) 0.24 x 0.24
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue,
Backlight White or Y/G LED backlight
Controller NT7701&NT7709
Power supply 3V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



FSTN Postive 320x240 Graphic LCD Module RYG320240A 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



FSTN Postive 320x240 Graphic LCD Module RYG320240A 1
