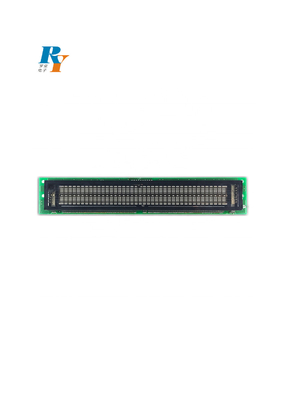

VFD Replacement Character LCD Module 4 Lines Futaba M402SD64ab M402SD07GS
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | M402SD64AB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Brand Name: | Futaba | Display Type: | 4 Lines*20 Characters |
|---|---|---|---|
| Outline Dimension: | 240.0*43.0*20.6 Mm | Display Size: | 240.0X43.0X20.6 Mm |
| Number Of Digits: | 40digits(5*7DOT+Cursor)*2rows | Display Area: | 16.4(H) *186.8(W) Mm |
| Highlight: | VFD Replacement Character LCD Module,4 Lines Character LCD Module,ISO COB LCD Display |
||
Product Description
Futaba VFD M402SD64ab M402SD07GS 100% Brand New Original VFD Replacement
Product Description
Main Specs:
Number of Digits: 80 Digits
Model: M402SD64AB
Outer Dimension: 240.0x43.0x20.6 mm
Display Area: 16.4x186.8 mm
Color of Illumination: Green
Operating Temperature: -20ºC --- +70ºC
Weight: Approx. 140g
| Item | Description |
| Model No. | M402SD64AB |
| Outline Dimension (mm) | 240.0*43.0*20.6 mm |
| Viewing Area (mm) | 240.0x43.0x20.6 mm |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -40º C~85º C |
Feature
1-1. Using one chip computer, the module can be connected to the system bus directly.
1-2. The module has two character tables (Katakana and European font). The selection of character tables is available by software.
1-3. By using dimming function, brightness can be controlled into four levels.
1-4. Since a DC-DC converter is included, only a 5V power source is required to operate the module.
1-5. High quality reliability and long life can be achieved with FUTABA VFD.
1-6. Either parallel or serial mode can be selected as the data input. Serial baud-rate is set on 9600bps, and it can be selected 4800,2400,1200bps with jumper.
1-7. The module's compact, light and thin mechanical sizing allows for maximum mounting flexibility.
Our Advantages
1.Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2.Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4.Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5.Service: Best after-sales service to ensure satisfaction from customers.
6.Warranty: Usually, product warranty for one year.
FAQ
Q: Can you customize the product? what do you need?
A:The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
