Monochrome Tn LED Segment Display 10mm Pixels CC CA With Yellow LED Backlight

small.img.alt small.img.alt

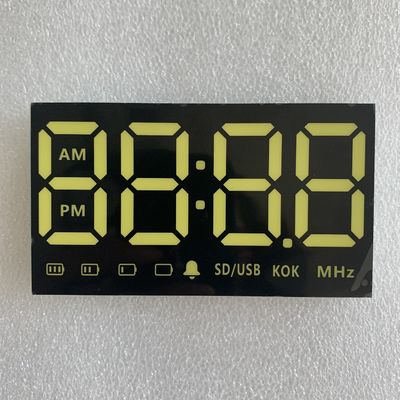

Large Image :  Monochrome Tn LED Segment Display 10mm Pixels CC CA With Yellow LED Backlight

Product Details:
Place of Origin: China
Certification: ROHS, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.16-0.36
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Supply Ability: 1000K pieces/Month
Detailed Product Description
Size: 0.28''~4'' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow, Orange...
High Light:

Monochrome Tn LED Segment Display


10mm Pixels LED Segment Display


CC CA Alphanumeric Led Display

7 segment LED Display Series-More Choices for Your Purchase


Size Digit Digit Height Polarity Color Face
0.28" LED DISPLAY one 7.0mm CC/CA R,G,B,Y,W Black/Grey
0.3" LED DISPLAY one 7.8mm CC/CA R,G,B,Y,W Black/Grey
0.36" LED DISPLAY one 9.1mm CC/CA R,G,B,Y,W Black/Grey
0.39" LED DISPLAY one 9.9mm CC/CA R,G,B,Y,W Black/Grey
0.56" LED DISPLAY one 14.2mm CC/CA R,G,B,Y,W Black/Grey
0.8" LED DISPLAY one 20.4mm CC/CA R,G,B,Y,W Black/Grey
1.2" LED DISPLAY one 30.6mm CC/CA R,G,B,Y,W Black/Grey
1.5" LED DISPLAY one 38.1mm CC/CA R,G,B,Y,W Black/Grey
2.3" LED DISPLAY one 56.8mm CC/CA R,G,B,Y,W Black/Grey
3.0" LED DISPLAY one 75.0mm CC/CA R,G,B,Y,W Black/Grey
4.0" LED DISPLAY one 101.6mm CC/CA R,G,B,Y,W Black/Grey



1. We can supply you all kinds of 7 segment LED display:

---Digit size: from 0.25" to 16"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 16 segment both available

3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color

4. Available surface color: black,grey or red

5. Lens color: white or same as emitting color



10mm Pixels Led Smd Module,

575nm Full Color Digital Display,

Smd Single Digit Led Display

How can I control multiple 7 segment displays?

The key idea of controlling multiple 7-segment displays is to use the same 7 IO output pins for all the segment lines. And also an additional control pin (transistor) to activate each 7-segment unit one at a time. And keep switching between all the digits fast enough to seemingly look as if they are lit at the same time.

Lowest Piece Price
The unit price of a segment display can range from less than $0.50/piece to $15/piece depending on quantity, size of glass, and other variables.

Lowest Tooling Fee
The tooling fee for a custom display is the lowest of all the technologies and allows the customer to receive a LCD that is manufactured to the exact dimensions requested, including custom icons and segments.

Focus LCDs offers a one-time NRE (Non-recurring engineering) or tooling fee. This includes all design, technical support, and samples. A PDF showing an overview of our tooling process can be found by clicking here: Custom LCD Flowchart

Low Power Consumption
Segment displays require less power than other display technology such as TFT, OLED, and UWVD. This makes these LCDs ideal for applications that are battery powered or solar powered. They require the lowest power to drive, an estimated 2uA per centimeter squared. Glass only displays (no backlight and no controller) require an estimated 10% of the power that is required for a LED backlight. In other words, a static display without a backlight will draw around 1mA; the same display with a LED backlight will demand from 10mA up to 25mA. Most displays can be driven at 3.3V or 5V since microprocessors can operate at both voltages. 3.3V is becoming more popular since two double ‘AA’ batteries can produce between 3.0V and 3.3V.







Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.


More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

Monochrome Tn LED Segment Display 10mm Pixels CC CA With Yellow LED Backlight 0



Monochrome Tn LED Segment Display 10mm Pixels CC CA With Yellow LED Backlight 1
