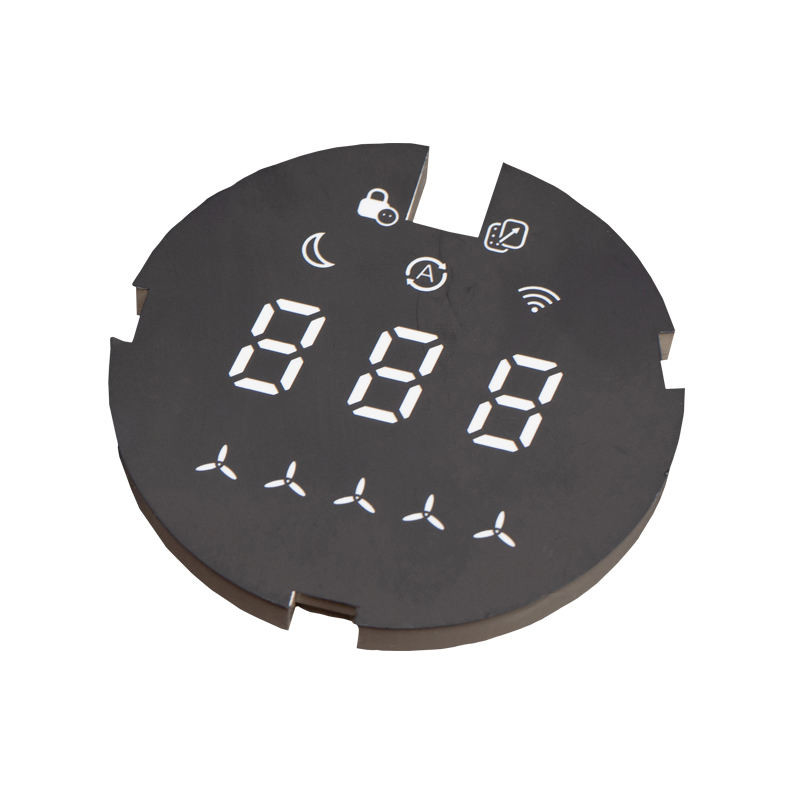

ISO LED Numeric Display 7 Segment LED Display For Air Conditioning Rice Cooker
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYL75689 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 300K pieces/Month |
|
Detail Information |
|||
| Tube Chip Color: | Full Color | Color: | Red,blue,green,yellow,white,orange |
|---|---|---|---|
| Screen Dimension: | Custom Made | Application: | Electronic Appliance |
| Model Number: | Customize | Usage: | Air Conditioning/washing Machine/rice Cooker/amplifier |
| Highlight: | ISO Led Numeric Display,5V Led Numeric Display,rice cooker 7 segment led display |
||
Product Description

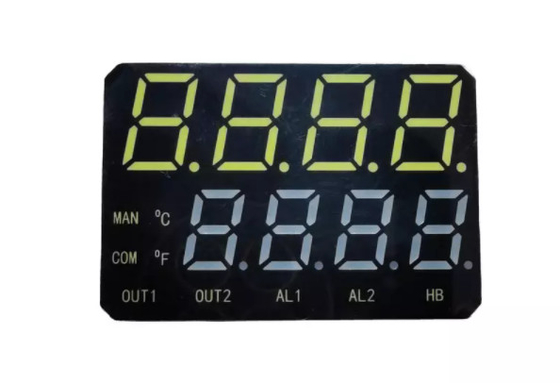

Custom Design Led Numeric Display 7segment Led Display For Air Conditioning
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
Application for custom led display
7 segment digit led number display and 7 segment color led display products are widely used in various terminal equipment, including testing and measuring equipment, sales terminals, telecommunications systems, household appliances, office equipment, consumer electronics and medical equipment, etc.
FAQ
1. Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2. What is your warranty?
Answer: Within one year after package have been received.
3. How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
4. Quality problems
Answer: If there is any quality problem or question, we could offer technical support or return service.
5. What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
