Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698

large.img.alt
small.img.alt small.img.alt small.img.alt

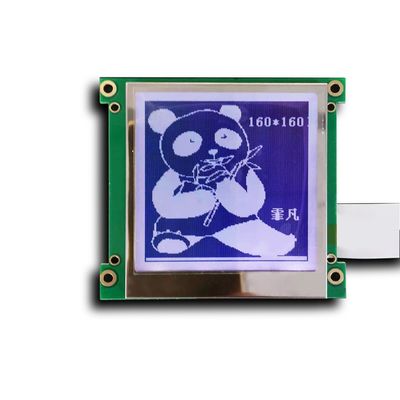

Large Image :  Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY160160
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.9
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 160X160 Outline (mm): 41*35
Backlight Color: White Color Connection: FPC-Soldering
Display Type: FSTN Power Supply: 3V
Interface: Parallel Backlight Current (Typ): 45mA
View Angle Range: No Connector: FFC-Connector
Appearance: Black On White Viewing Direction: 12:00
High Light:

FSTN Monochrome Graphic Display Module

,

FFC Monochrome Graphic Display Module

,

UC1698 Lcd Touch Screen Module

FSTN Monochrome Graphic Lcd Module COG+FPC Driver IC UC1698

Product Description
1. 160x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 160x160dots Graphic LCD Module
Model No. RY160160
Dot Format 160x160
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC UC1698
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC




Graphic LCD Display

1. Customized according to client's requirement

2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies

3. Available for different modes such as yellow-green, blue and black color.

4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.

Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..


Graphic LCD displays are your first stop when simple text is not sufficient for a design.

With per-pixel control available, almost any monochrome image can be drawn on the display. With the many possibilities this level of control offers, Graphic LCDs can be found in products ranging from handheld gaming devices to industrial consoles. Like character LCDs, graphic LCDs are available in TN, STN, and FSTN options with positive and negative images. The polarizers come in Reflective, Transmissive, and Transflective types and are available in a wide range of colors.

Parallel and Serial interface options make operation no more difficult than interfacing with an 8-bit microcontroller. These displays come with user controlled contrast meaning they can be used in a wide range of settings and the display can be adjusted to ensure optimal optical performance. Many displays also have temperature compensation circuitry to maintain contrast as the ambient temperature changes. All of this makes graphic LCDs a versatile and rugged means of adding graphics to a design.





Applications



Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698 0





Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698 1





Favorable Comments



Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698 2





FAQ


Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.


Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.


Q:What certification could provide ?
A: There are RoHS/CE certificatons for raw materials. The products reach RoHS/CE standard. And they could be certified with RoHS/CE if the certifications are needed.


Customized RY160X160 dot sFFC FSTN Monochrome Graphic Display Module COB FPC Driver IC UC1698 3
