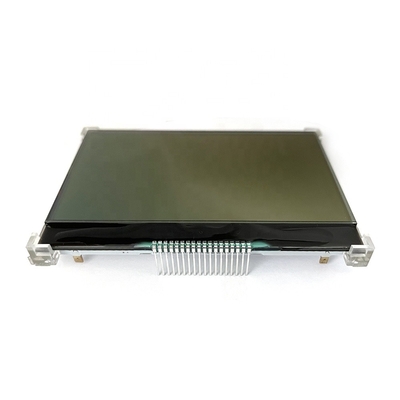

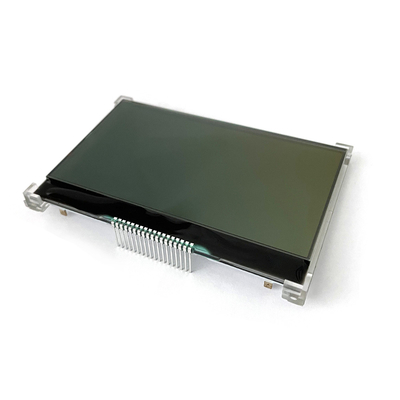

Cog 128X64 LCM Display Module FSTN 18 Pin 128X64 White LED Backlight

Certification
China Royal Display Co.,Limited certification
China Royal Display Co.,Limited certification
Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

Cog 128X64 LCM Display Module FSTN 18 Pin 128X64 White LED Backlight

large.img.alt
large.img.alt

Large Image :  Cog 128X64 LCM Display Module FSTN 18 Pin 128X64 White LED Backlight

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG12864F
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please contact us
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 30K/Month
Detailed Product Description
Product Name: RYG12864F Dot Matrix Lcd Module With ST7565P Model No.: RYG12864F
LCD Type: FSTN Dot Format: 128X64
Viewing Angle: 6 O' Clock Backlight: Edge,LED -White
Driver IC: ST7565P Operating Temp: -20º C~70º C
High Light:

Cog 128X64 LCM Display Module

,

128X64 LCM Display Module

,

FSTN Dot Matrix LCD Screen

COG 128x64 LCM module FSTN display mode 18pin white LED backlight Dot matrix LCD screen

PRODUCT DESCRIPITION

COG 12864 LCD display st7565 controller LED backlight highlight LCD module



Type
Graphics LCD
Display Size
3.2 inch
Supplier Type
manufacturer
Place of Origin
China
Model Number
RYG12864F
Brand Name
ROYAL DISPLAY
Resolution
128*64
Viewing direction
6 O' Clock
Controller
st7565p
Display mode
FSTN/Positive/Transflective
Module size
77.4*52.4*6.5mm
Viewing area
70.0*40.0mm
Dot size
0.48.0.48mm
Backlight
Edge, LED -White
Storage temp
-20ºC~ 70ºC
Operation temp
-10ºC~ 60ºC

Cog 128X64 LCM Display Module FSTN 18 Pin 128X64 White LED Backlight 0

Cog 128X64 LCM Display Module FSTN 18 Pin 128X64 White LED Backlight 1

FAQ

Q: Can you customize the product? what do you need?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.

Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.

Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
