3V 12864 Resolution Liquid Crystal COG LCD Module Monochrome Lcd Screen

small.img.alt small.img.alt

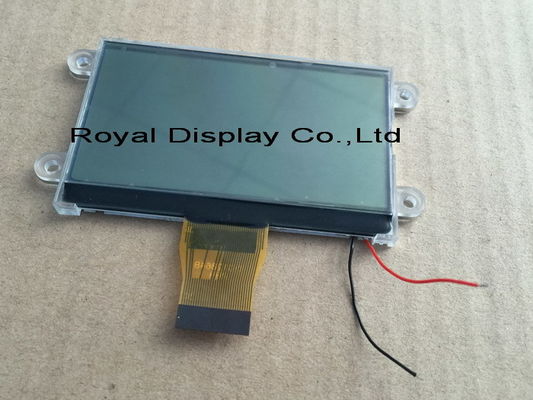

Large Image :  3V 12864 Resolution Liquid Crystal COG LCD Module Monochrome Lcd Screen

Product Details:
Place of Origin: CHINA
Certification: SGS ROHS
Model Number: RYG12864L
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: USD 3.99-5.89
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYG12864M 3.3V Power Supply Dot Matrix Lcd Module With ST7565R 128X64 Dot AA=34.53*21.73mm Model No.: RYG12864A
Dot Format: 128X64 Viewing Angle: 6 O' Clock
LED Backlight: White, 3.0V, 20mA Driver IC: ST7567
Operating Temp: -20º C~70º C LCD Type: FSTN OR STN
Connector: FPC Display Type: STN Blue
High Light:

3V 12864 COG LCD Module


ST7567 FPC COG LCD Module


RYG12864L Monochrome Lcd Screen

3V 12864 Resolution Liquid Crystal COG Lcd Display Monochrome Lcd Screen


General Specifications


1. COG Graphic LCD Module

2. Dots Format, 128x64

3. Controller , ST7567

4. STN-Gray, Blue, DFSTN-Negative, FSTN-Postive

5. LED Back Light, White, Red, Amber

6. Widely Use On Hand-held Device


Display Specifications


 Item  Description
 Product Name  128x64dots Graphic LCD Module
 Model No.  RYG12864A
 Dot Format(dot)  128x64
 Outline Dimension(mm)  40.8x34.8
 VA Size(mm)  37.7X25.1
 AA Size( mm)  34.5x21.7
 Viewing Angle  6 O' clock
 LCD Mode  FSTN-Positive, STN-Blue, STN-YG
 Backlight  White or Y/G LED backlight
 Driver IC  ST7565R
 Power supply  3V or 5V
 Interface  Parallel
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C

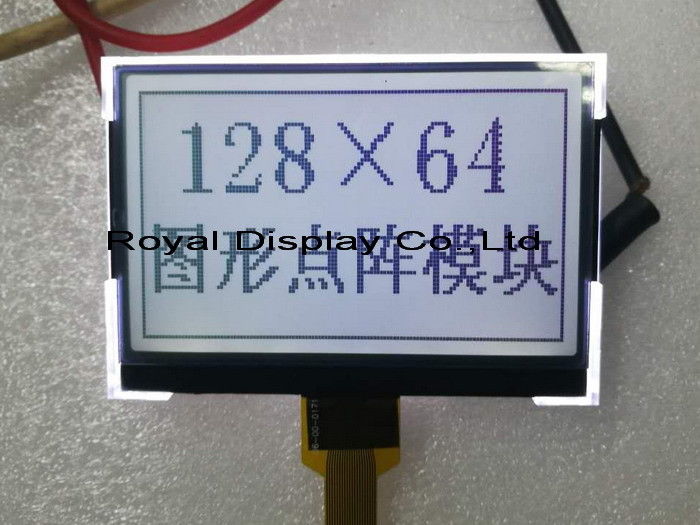

3V 12864 Resolution Liquid Crystal COG LCD Module Monochrome Lcd Screen 0


Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range





Q1: How many years for warranty can you provide?

A1: Normally 1 year. Can be longer but price should be modified.


Q2: What shall we do if we find any item missing or defective after receiving the goods?

A2: Please contact us ASAP, we will check it and offer the best solution according to the situation.


Q3: Is it possible to customize the LCD modules?

A3: Yes you could let us know the concrete requirements then we will design and confirm with you.


Q4: Is it possible we appoint the delivery agent?

A4: Yes. Except the couriers we mentioned, we could use others as your requirement.


Custom LCD/LCM are available
