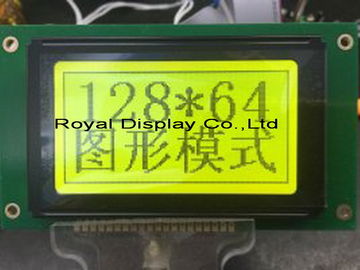

128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYB12864C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | RYP12864C Graphic LCD Module FSTN Positive Black On White Or STN Blue White 240*128 Dots | Model No.: | RYP12864C |
|---|---|---|---|
| Dot Format: | 128X64 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White | Controller: | T6963C |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN Postive STN Bule |
| Highlight: | Dot Matrix Lcd Display Module,Dot Matrix Lcd Module |
||
Product Description
Dot Matrix RYP12864C Graphic LCD Module FSTN Positive Black On White or STN Blue White 128*64 Dots
1. 128x64 dots,
2. Parallel interface
3. DC/DC on board, 5v power supply
4. STN-blue, FSTN-positive with white LED backlight
5. Compact structure, high reliable, pure new design
2. Parallel interface
3. DC/DC on board, 5v power supply
4. STN-blue, FSTN-positive with white LED backlight
5. Compact structure, high reliable, pure new design
6. Touch panel optional
| Item | Description |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | RYB12864C |
| Dot Format | 128X64 |
| Outline Dimension(mm) | 90.0 x 73.0 |
| Assem. Size(mm) | 88 x 65 |
| Viewing Area(mm) | 73.7 x 38.8 |
| Pixel Size( mm) | 0.508 x 0.408 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | AT0107 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
