RYB4004Alcd Character Display , Oled Character Display Yellow / Green / White LED Backlight
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYB4004A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 130pcs/CTN 7.0Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 500k/Month |
|
Detail Information |
|||
| Product Name: | STN 40x4 Character LCD Module RYB4004A | Model No.: | RYB4004A |
|---|---|---|---|
| LCD Type: | STN | LED Backlight: | White |
| Highlight: | Lcd Display Module,Lcd Character Display |
||
Product Description

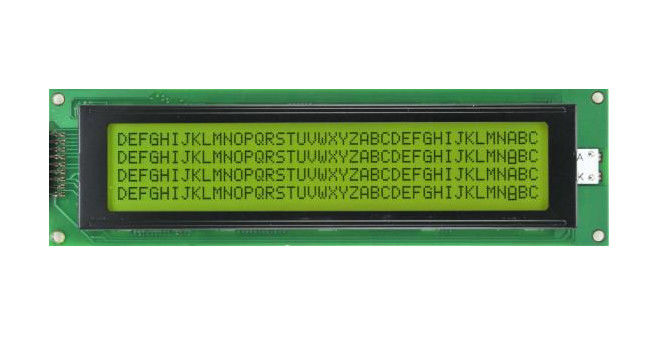

RYB4004A LCD Display, 40x4 with Yellow-Green or White LED Backlight
| Item | Description |
| Product Name | 40x4 COB LCD Module |
| Model No. | RYB4004A |
| Dot Format | 40 x 4 |

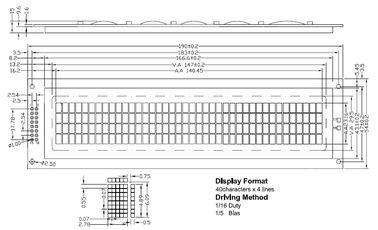

| Outline Dimension(mm) | 190.0 x54MAX |
| Assem. Size(mm) | 183.0 x 47 |
| Viewing Area(mm) | 147x29.5 |
| Character Size( mm) | 2.78 x 4.89 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-Gray, STN-blue VA |
| Backlight | White LED backlight or No backlight |
| Driver IC | ST7066U |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
1.Typical Applications:
Telephone, Home Automation, Industrial Instruments, Price Tag, Printer, Fax, etc
2.Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: 1:8~1:34 for one to four line characters
Wide Operation & Storage temperature range
High reliability
Low power consumption
Want to Know more details about this product
