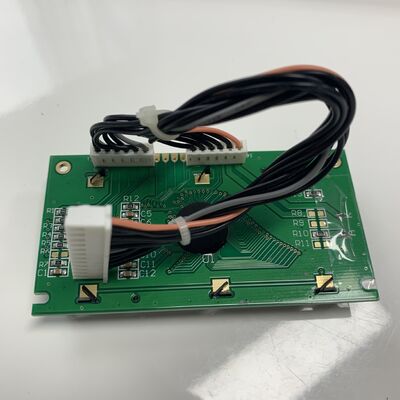

8×2 Character LCD Module STN Gray Transflective Positive Yellow-Green Backlight 5V Supply 0-50℃ Operating Temperature
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | RYP0802A |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Model: | RYP0802A | Outline Dimensions: | 84.0mm × 44.0mm × 14.0mm |
|---|---|---|---|
| View Area Size: | 63.0mm × 26.0mm | Active Area Size: | 57.17mm × 23.0mm |
| Character Size: | 6.07mm × 11.44mm | Viewing Direction: | 12 O'clock |
| Highlight: | 8x2 character LCD module with yellow-green backlight,STN gray transflective LCD module 5V supply,Character LCD module for 0-50℃ operating temperature |
||
Product Description
8×2 Character LCD Module STN Gray Transflective Positive Yellow-Green Backlight 5V Supply 0-50℃ Operating Temperature
The famous brands display we have
BOE : Mass Production Specialist · Full-Size AMOLED Coverage
We offer standard BOE LCD modules and support deep customization based on BOE glass — enabling end-to-end solutions from prototype to mass production.
AUO : Premium TFT Leader · Built for Demanding Environments
Specializes in high-reliability displays for automotive and industrial applications. Share your part number or product drawing, and we’ll match you with the right material, lead time, and quote.
Innolux : Flexible Supply · Glass-Only or Full Modules
We supply original display modules as well as glass-only solutions, meeting your needs at different stages of integration.
Tianma : Industrial & Custom Display Solutions Hub
Extensive expertise in industrial segments, offering a wide range of highly customizable displays tailored to diverse applications.
Waveshare : Embedded Display Integration Partner
More than a display supplier — we provide embedded hardware and software integration support.
E-Paper Ecosystem : Multi-Brand Options · Low-Power Excellence
Featuring leading e-paper brands such as E-ink, Good Display, and DKE, ideal for low-power, paper-like display applications.
Value-Added Services
Looking for more cost-effective alternatives or replacements for EOL models? We can recommend optimized options based on your requirements and provide corresponding quotes and lead times.
Product Description
| Item | Description |
| Model | RYP0802A |
| Display Type | Character LCD, STN Gray, Transflective Positive |
| Display Format | 8 Characters × 2 Lines |
| Dot Matrix | 5 × 8 Dots per Character |
| Controller/Driver | ST7066U-0A |
| Interface | 8-bit Parallel |
| Pin Count | 16-pin |
| Logic Supply Voltage | 5.0V ± 0.5V |
| LCD Drive Voltage | Typical 4.8V |
| Backlight Type | LED (Yellow-Green) |
| Backlight Voltage/Current | 4.2V / 150mA |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -10°C to +60°C |
| Outline Dimensions | 84.0mm × 44.0mm × 14.0mm |
| View Area Size | 63.0mm × 26.0mm |
| Active Area Size | 57.17mm × 23.0mm |
| Character Size | 6.07mm × 11.44mm |
| Viewing Direction | 12 o'clock |
Short Description:
The RYP0802A is an 8x2 character LCD module featuring STN gray transflective positive display, integrated yellow-green LED backlight, 5V operating voltage, wide viewing angle, and is suitable for industrial control, instrumentation, POS terminals, and various equipment.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
RYP0802A 8×2 Character LCD Module
The RYP0802A is a high-performance and highly reliable character LCD module designed for embedded systems, industrial control, and consumer electronics. It utilizes STN gray-scale technology with a transflective positive display mode, delivering clear and high-contrast visuals under any lighting condition. The integrated yellow-green LED backlight ensures excellent readability in low-light environments.
Key Features:
-
Standard Character Display: Displays 2 lines of 8 characters each (5x8 dot matrix), compatible with the ASCII character set, and supports custom character creation.
-
Superior Display Quality: STN panel combined with 1/16 duty cycle and 1/5 bias driving provides stable grayscale display and wide viewing angles.
-
Integrated Backlight: Built-in high-efficiency yellow-green LED backlight operates at 4.2V, offers uniform brightness, and has a lifespan of up to 50,000 hours.
-
Standard Interface & Control: Features a universal 8-bit parallel interface and the ST7066U-0A controller, compatible with most microcontrollers on the market. It offers a rich instruction set for easy programming.
-
Wide Operating Temperature Range: Operating temperature from 0°C to +50°C and storage temperature from -10°C to +60°C, suitable for various environments.
-
Robust Construction: The module is secured with a metal frame (iron bezel) and uses zebra elastomer connectors for a stable structure that resists shock and vibration.
-
Environmentally Compliant: The product is RoHS compliant.
Typical Applications:
-
Industrial Control Panels & HMI
-
Test and Measurement Instruments
-
Office Equipment (e.g., printer, copier status display)
-
Commercial Equipment (POS terminals, card readers)
-
Medical Equipment Display Units
-
Home Appliance Control Panels
-
Embedded Development & Electronic Projects
