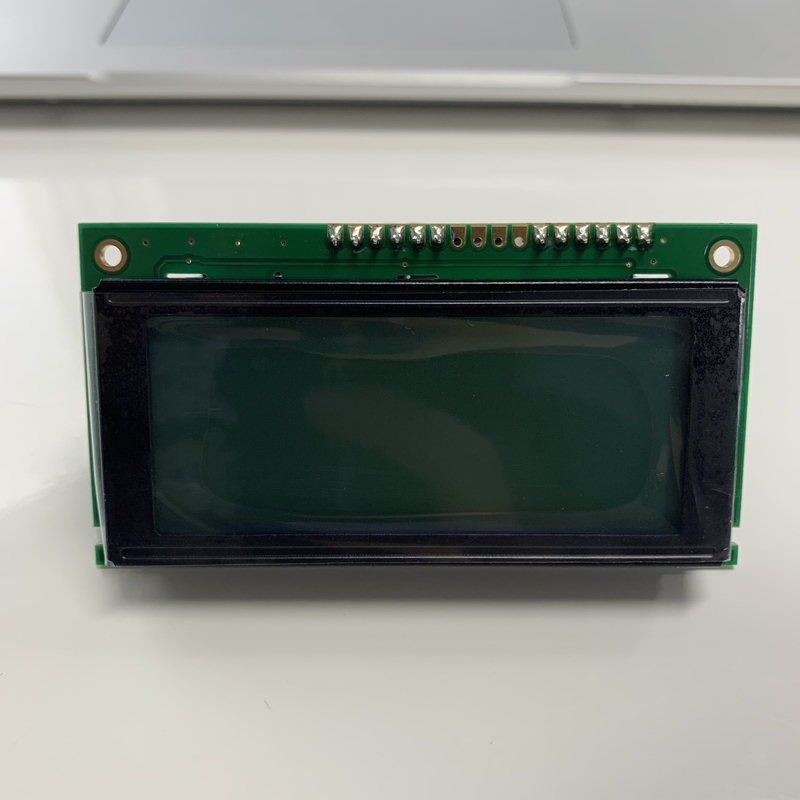

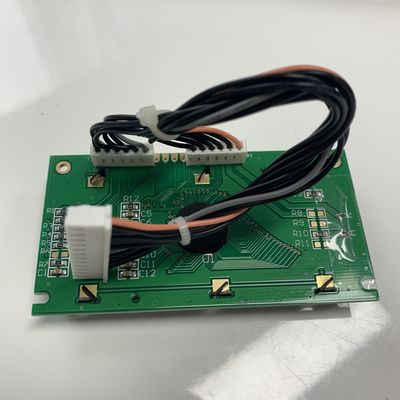

RYP0802A 8x2 Character LCD Display Module STN Gray Transflective Positive 5V Logic
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | RYP0802A |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Model: | RYP0802A | Display Format: | 8 Characters × 2 Lines |
|---|---|---|---|
| LCD Type: | STN, Gray, Transflective, Positive | Controller: | ST7066U |
| Viewing Direction: | 12 O'clock | Drive Method: | 1/16 Duty, 1/5 Bias |
| Highlight: | 8x2 character LCD display module,STN gray transflective LCD module,5V logic character LCD display |
||
Product Description
RYP0802A 8x2 Character LCD Display Module STN Gray Transflective Positive 5V Logic
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | RYP0802A |
| Display Format | 8 Characters × 2 Lines |
| LCD Type | STN, Gray, Transflective, Positive |
| Controller | ST7066U |
| Viewing Direction | 12 O'clock |
| Interface Mode | 8-bit Parallel |
| Module Outline Dimensions | 84.0 (L) × 44.0 (W) × 14.0 (T) mm |
| Viewing Area | 63.0 (L) × 26.0 (W) mm |
| Active Display Area | 57.17 (L) × 23.0 (W) mm |
| Character Size | 6.07 (W) × 11.44 (H) mm |
| Dot Size | 1.15 (W) × 1.36 (H) mm |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -10℃ ~ +60℃ |
Short Description:
8 Character x 2 Line Character LCD Module, STN Gray Transflective Positive Display, ST7066U Controller, 5V Power Supply, Yellow-Green LED Backlight, Standard HD44780 Instruction Set for Industrial Instruments & Equipment.
