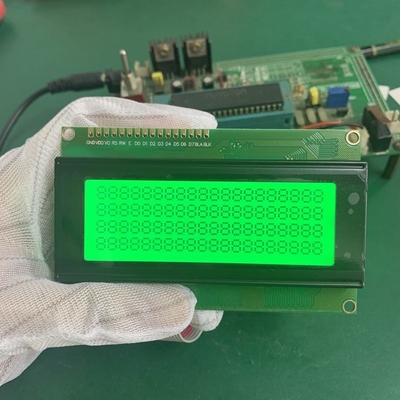

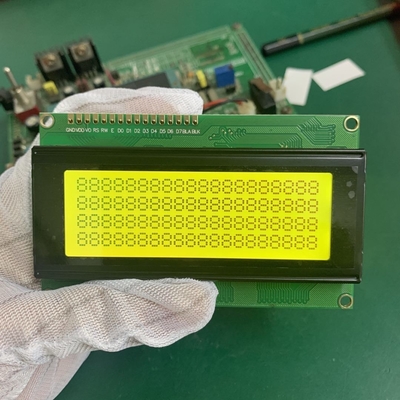

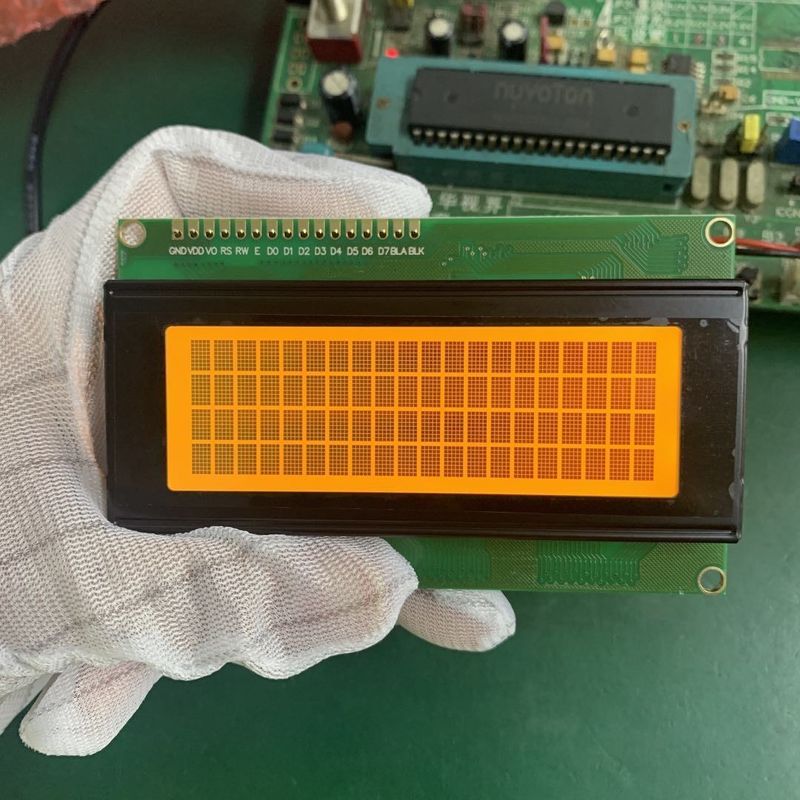

20*4 STN Blue 6H 5V positive character LCD Module industrial display
What do you need to tell me if you want to customize your own LCD Module
1) Your purpose or application of customization
Is it for industrial, medical or commercial use? You could tell me the user scenario and specific application.
2) You prefered display type
OLED, LED, or LCD? With or without LED? With or without touch? And if you already got drawing with the size, resolution, display content, it would be the best.
3) Display parameters
If don't have finished drawing, you could send us the reference pictures.
Take energy meter for example: Normally the display content including voltage, current, power, energy consumption, alerts, time/date etc..
And if you want us to add your company label on the screen or cover panel, just tell us.
4) Interface and IC requirements
Normally the display itself has its own matched IC and interface, but if you need some IC based display, we will arrange tooling for you to test.
5) Certifications
Our products meet RoHS and ISO9001 standard. And the raw materials meet REACH standard.
But the REACH is for material, and every kind of LCD Module are made of different materials.
So if you need REACH certificate, there probably be extra cost for lab testing.
6) Order amount and target price
This is crutial for our quotation and lead time. We will suggest suitable products to you accrdingly.

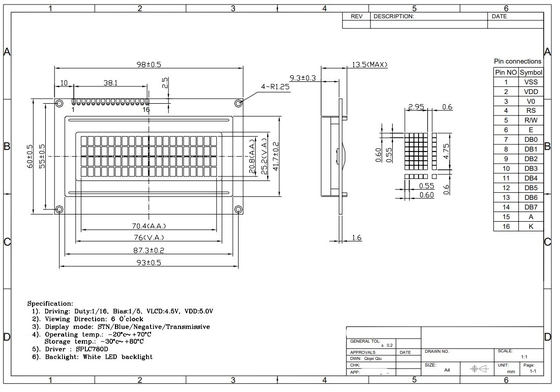

| Module Size With B/L(W X HX T)(mm) |
85.0*30.0*6.2 mm |
| Lcd Type |
STN/FSTN |
| Display type |
20(characters)×4(line) |
| View Area(mm) |
76.0*25.2 mm |
| Character size(mm) |
2.95*4.75 mm |
| Character pitch(mm) |
3.55*5.35 mm |
| Controller&driver |
SPLC780D or equivalent |
| Interface |
PIN |
| OperationTemp.(ºC) |
-20 to +70ºC |
| StorageTemp.(ºC) |
-30 to +80ºC |
Where is recommended to use STN displays
STN displays are preferred in industrial environments where cost-effectiveness, lower power, readability weigh more than high refresh rates and full-color.
They are widely used for numeric/ text heavy interfaces.
Product Applications
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. Some common applications are industrial mater, BPG, POS machine,Washing machine, thermometer, calculator, car speedometer, GPS tracker, electric cooker, hair curler, fuel dispenser, w
OurAdvantages
1. Technology leadership: We invest in R&D and innovation to advance LCD screen technology and provide high-quality, high-performance products.
2. Product variety: We offer kinds of LCD screens of different sizes, resolutions, functions, and applications. We are able to meet the needs of different customers and provide customized solutions.
3. Quality and reliability: We focus on product quality and reliability. We employ strict quality control and testing processes to ensure that their products meet high standards and have stable performance and long life.
4. Competitive Prices: We can offer competitive prices and provide customers with cost-effective products.
5. Customer service and support: We value customer service and support and provide timely technical support, after-sales service and solution consultation to ensure customer satisfaction and success.
