SLCD 55'' 65'' 75'' 2K FHD Spliced LCD Panel Customized 3.5mm Ultra Slim Bezel

SLCD 55'' 65'' 75'' 2K 3.5mm FHD ultra-slim bezel spliced LCD panel

Production Description

When considering splicing an LCD panel, there are several important parameters to take into account. These parameters will help ensure compatibility and proper functioning of the LCD panel in the desired application. Here are some key parameters worth noticing:

1. Display Size: LCD panels come in various sizes, typically measured diagonally in inches. Make sure the size of the LCD panel matches your requirements and the available space for installation.

2. Resolution: LCD panels have a specific resolution, which refers to the number of pixels in the display. It is usually represented as the number of pixels horizontally by the number of pixels vertically (e.g., 1920x1080). Ensure that the resolution of the LCD panel aligns with your intended use and the capabilities of the device you plan to connect it to.

3. Interface Type: LCD panels have different interface types, such as LVDS (Low-Voltage Differential Signaling), HDMI (High-Definition Multimedia Interface), DVI (Digital Visual Interface), or eDP (Embedded DisplayPort). Ensure that the interface type of the LCD panel matches the available interfaces on the device you intend to connect it to.

4. Pin Configuration: LCD panels have a specific pin configuration for the interface connection. This includes the number and arrangement of pins for power supply, signal transmission, and control. Verify that the pin configuration of the LCD panel is compatible with the interface connector or adapter you plan to use.

5. Voltage and Power Requirements: LCD panels typically require a specific voltage and power supply to operate correctly. Ensure that the power requirements of the LCD panel align with the available power source or power management system in your setup.

6. Backlight Type: LCD panels require a backlight to illuminate the display. There are different backlight types, such as LED (Light-Emitting Diode) or CCFL (Cold Cathode Fluorescent Lamp). Consider the type of backlight used in the LCD panel and ensure it is compatible with your power supply and control requirements.

7. Timing and Control Signals: LCD panels require specific timing and control signals to synchronize the display. These signals include clock signals, data signals, synchronization signals, and control signals. Ensure that the device or system you plan to connect the LCD panel to can provide the required timing and control signals.

8. The applications of spliced LCD panels can vary across different industries and settings. Here are some common applications of spliced LCD panels:

9. Digital Signage: Spliced LCD panels are widely used in large-scale digital signage displays. By combining multiple LCD panels together, a seamless and immersive display can be created for advertising, information display, or entertainment purposes in public spaces like shopping malls, airports, stadiums, and museums.

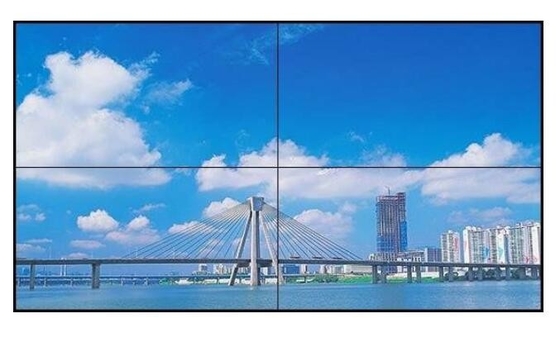

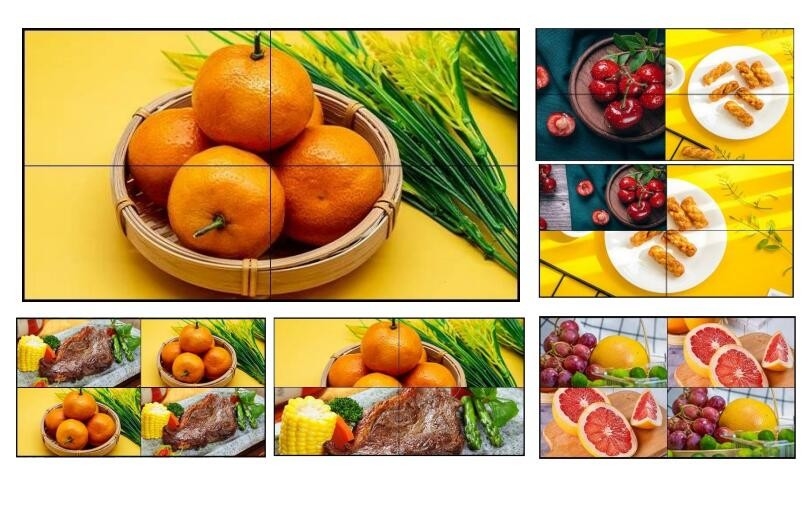

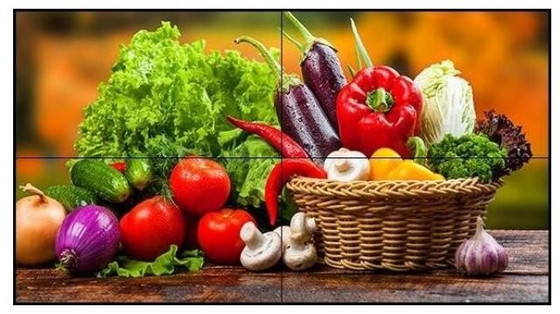

10. Video Walls: Spliced LCD panels are commonly employed to create video walls, where multiple displays are tiled together to form a larger, unified screen. Video walls are used in various settings, including control rooms, command centers, broadcast studios, corporate lobbies, and retail environments, to deliver high-impact visual content and information.

11. It's worth noting that the applications of spliced LCD panels are not limited to the examples mentioned above. The versatility of spliced LCD panels allows for creative and innovative display solutions in various industries and settings.

12. Presentation and Conference Rooms: Spliced LCD panels find application in meeting rooms, conference rooms, and auditoriums where large displays are required for presentations, collaborations, and video conferencing. By combining multiple LCD panels, a seamless and expansive display can be achieved, enhancing the visual experience for participants.

13. Control Centers: Spliced LCD panels are utilized in mission-critical environments such as control centers for monitoring and managing complex systems. These can include utility control rooms, transportation control centers, emergency response centers, and process control rooms. The large display area provided by spliced LCD panels allows operators to view multiple information sources simultaneously.

14. Entertainment and Gaming: Spliced LCD panels are employed in entertainment venues and gaming arenas to create immersive visual experiences. They are used for large gaming displays, virtual reality setups, immersive projections, and simulation environments.

15. Education and Training: Spliced LCD panels can be utilized in educational institutions and training facilities to create collaborative learning environments, interactive displays, and immersive training simulators.

16. Retail and Advertising: Spliced LCD panels are used in retail stores and advertising campaigns to create eye-catching and engaging displays for showcasing products, promotions, and bran
