65'' 75'' 86'' Interactive White Board Smart Conference Interactive Whiteboard
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY, HKC or customized |
| Certification: | SGS, ROHS |
| Model Number: | 65H1R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Resolution: | 3840X2160 | Picture Ratio: | 16:9 |
|---|---|---|---|
| Color Saturation: | 70% NTSC Typ | Response Time Range: | 8 To 9.5ms |
| Cover Glass: | Anti-Glare Cover Glass | Bonding Type: | Zero Bonding |
| Highlight: | 86'' Interactive White Board,Smart Conference Interactive Whiteboard |
||
Product Description

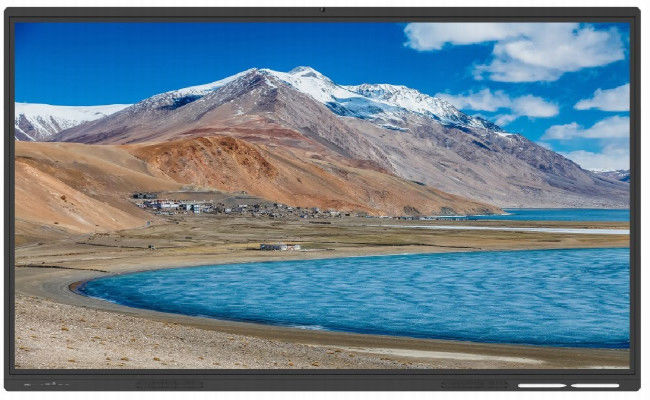

1. 产品外观图/Product Appearance and Functionality
2. 显示规格/Display
| 尺寸 Size | 65 inch | 75 inch | 86 inch |
| 分辨率 Resolution | 3840( H )×2160(V) | ||
| 画面比例 Picture Aatio | 16:09 | ||
| 显示区域 Active Area | 1428.48 x 803.52 | 1649.664 ×927.936 | 1895.04 x 1065.96 |
| 色彩数 Colors | 1.07B( 8bit+FRC) | ||
| 对比度 Contrast Ratio | 1200:1(Type) | 1200:1(Type) | 4000:1(Type) |
| 响应时间 Response Time | 9.5ms(Type) | 8ms(Type) | 8ms(Type) |
| 色域 Color Saturation |
70% NTSC(Type) |
70% NTSC(Type) | 70% NTSC(Type) |
| 可视角度 Viewing Angle | 178°( H )/178°(V) | ||
| 钢化玻璃 Cover Glass | Anti-glare Cover Glass |
| 贴合方式 Bonding Type | 零贴 Zero Bonding |
| 背光类型 Backlight type | DLED |
| 整机亮度 Brightness | 350cd/㎡(± 10%) |
| 寿命 Life span | ≥30000h |
3.操作系统/OS
|
系统版本 OS |
Android 11.0 |
| CPU | Quad core ARM Cortex-A55 |
| GPU | ARM Mali-G52 MP2 (2EE) |
|
运行内存 RAM |
4G |
|
存储空间 ROM |
32G |
4.通信规格/Communication
|
WiFi & Bluetooth |
波段 Frequency Band |
2.4G/5G |
|
WiFi 标准协议 WiFi protocol |
IEEE 802.11a/b/g/n/ac/ax | |
|
蓝牙 Bluetooth |
BT 5.0 |
5.触摸规格/Touch
|
触控类型 Touch Type |
红外触控 Infrared Touch |
|
触摸点数 Touch Points |
40 点 40 points (it is 32 touch under android and 40 under windows) |
|
书写点数 Writing Points |
5 点 3mm书写(90%以上触摸区域) 5 points 3mm writing(over 90% Area) |
|
触控精度 Touch Accuracy |
±1mm( 90%以上区域) ±1mm( over 90% Area) |
|
单点响应速度 Response Time for Single Touch |
≤5ms |
|
最小识别物 Minimal Identifier |
2mm |
|
书写高度 Writing height |
≤3mm |
|
插值分辨率 Touch Interpolation Resolution |
32767( W )× 32767( D) |
|
理论点击次数 Theory Clicks |
无限次 Unlimited |
|
支持系统 Supported Systems |
Windows10/Windows8/Windows7/Android/Windows/XP/Linux/ Mac OS/Chrome |
6.扬声器/Speaker
|
声道 Sound channel |
2.0 |
|
功率 Power |
2×15W |
7. 摄像头麦克风/Camera & Mic
|
摄像头 Camera |
4800W |
External Optional |
|
麦克风 Mic |
8 阵列 8 array |
External Optional |
8.输入输出接口/Input & Output
|
前端口 Front I/O |
HDMI IN |
1 |
1 路前置 1-way front-mounted |
|
Type-C IN |
1 |
1 路前置 1-way front-mounted |
|
|
USB 3.0 |
2 |
2 路前置 2-way front-mounted |
|
|
Touch USB 3.0 |
1 |
1 路前置 1-way front-mounted |
|
|
下端口 Down I/O |
HDMI OUT | 1 | |
| RJ45 IN | 1 | ||
| RJ45 OUT | 1 | ||
| PC Audio IN | 1 | ||
| VGA | 1 | ||
| DP | 1 | ||
| Audio OUT | 1 | ||
| Optical OUT | 1 |
|
侧端口 Side I/O |
RS232 | 1 | |
| Android USB2.0 | 1 | ||
| HDMI IN | 1 | ||
| HDMI IN | 1 | ||
| Type-C IN | 1 | ||
| Touch OUT | 1 | ||
| USB3.0 | 1 | ||
| USB3.0 | 1 |
9.电气规格/Electrical
|
尺寸 Size |
65 inch |
75 inch |
86 inch |
|
电源输入 Power Input |
100-240V~50/60Hz 3.2-1.3A |
100-240V~50/60Hz 4.2-1.7A |
100-240V~50/60Hz 5.0-2.0A |
|
最大功耗 Maximum Power Consumption |
Max 320 |
Max 420 |
Max 500 |
|
待机功耗 Standby Power |
≤0.5W |
≤0.5W |
≤0.5W |
10.整机规格/Structure
|
尺寸 Size |
65 inch |
75 inch |
86 inch |
| 整机尺寸 Product Size |
1486*898*106mm |
1708*1023*106mm |
1955*1162*106mm |
| VESA 孔 VESA hole | 500×400mm | 600×400mm | 800×400mm |
|
壁挂螺丝规格 Wall mount screw specifications |
M8×25mm |
M8×25mm |
M8×25mm |
| 净重 Net weight | 38Kg | 54Kg | 68Kg |
| 毛重 Gross weight | 49Kg | 65Kg | 85Kg |
11.配件/Accessories
|
电源线 Power cable |
×1 ,3m |
|
书写笔 Writing pen |
×2 |
|
遥控器 Remote Control |
×1 |
|
HDMI 线 HDMI Cable |
×1 , 3m |
|
Touch 线 Touch Cable |
×1 , 3m |
|
壁挂件 Wall Mount |
×1 |
12.环境因素/Environment
|
工作温度 Operating temperature |
0~40℃ |
|
工作湿度 Operating humidity |
10%~90%RH |
|
存储温度 Storage temperature |
-20℃~60℃ |
|
存储湿度 Storage humidity |
10%~90%RH |
|
工作高度 Operational height |
5000m 以下 Below 5000 m |
