Product Description
Character LCD is a liquid crystal display technology used in electronic devices that display text and simple icons, usually presented in a fixed character size and arrangement. A 16x2 character LCD refers to a liquid crystal display (LCD) module that can display 16 characters in each of its 2 rows. It is commonly known as a 16x2 character LCD or 16x2 alphanumeric LCD. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. Here is the datasheet of our 16x2 character LCD module.
The table contains specific instructions.
| Outline Size(mm) |
80(L)x36(W)x13.0(T) |
| Lcd Type |
STN,NEGATIVE(YG),TRANSMISSIVE |
| Display type |
16(characters)×2(line) |
| ViewArea(mm) |
64.5(L)x14.5(W) |
| Dots size(mm) |
0.54(W)x0.60(H) |
| Dots pitch(mm) |
0.59(W)x0.65(H) |
| Character Size(mm) |
2.9(W)x 5.15(H) |
| Driver Condition |
LCD Module:1/16Duty,1/5Bias |
| Controller&driver |
AIP31066 |
| View Direction |
6 O'Clock |
| Interface mode |
8-bit MPU interface |
| VDD&VOP (Type) |
5.5V |
| Backlight (Type) |
SIDE WHITE |
| OperationTemp.(ºC) |
-20 to +70 |
| StorageTemp.(ºC) |
-30 to +80 |

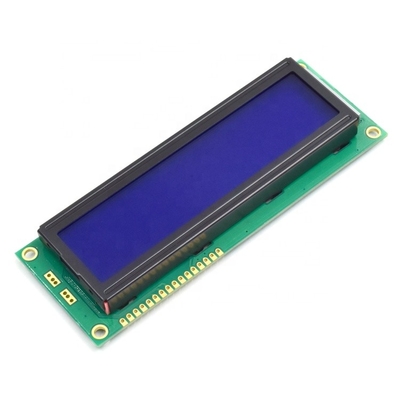

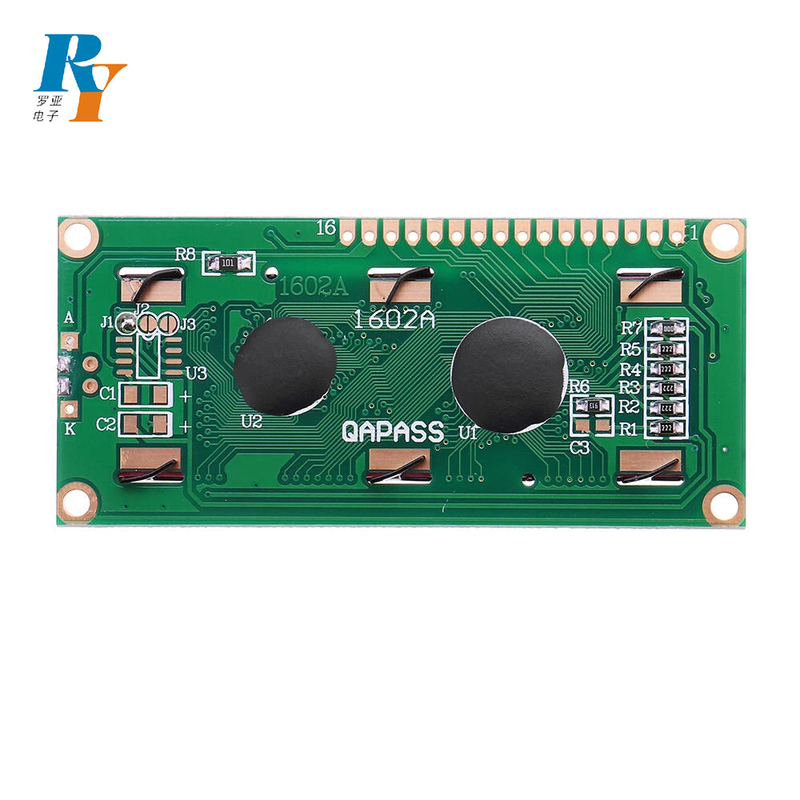

The drawing of 1602 character LCD module
Product Features
1. Text Display: Character LCD is mainly used to display text information, usually presented in a fixed character size and arrangement.
2. Save energy: Character LCD generally consumes less power than other display technologies, such as LED or color LCD, because it only needs to activate the liquid crystal to display text, without the need for a backlight.
3. High visibility: Character LCDs generally excel in high-light visibility. They are also clearly visible in direct sunlight and are suitable for outdoor applications.
4. Cost-Effectiveness: Due to its simple design and low power consumption, character LCD is generally more affordable than other display technologies and is therefore widely used in cost-sensitive projects.
5. Embedded systems: Character LCDs are often used in embedded systems and small electronic devices, such as smart home control panels, instrument panels, user interfaces in electronic devices, etc.
Applications
Character module, is an alphanumeric display that can show characters, symbols, and numbers. 16x4 character LCD Display are widely used in various electronic devices, such as digital meters, timers, temperature controllers, electronic scales, etc. They can display real-time data, measurement results, equipment status, etc., and provide basic information display functions. 16x4 character LCD Display can also be used in embedded systems, such as microcontroller development boards, embedded controllers, robot control panels, etc. They can display debugging information, user prompts, status indicators, to facilitate interaction between developers and users.
Customized Services
1. Available for different modes such as TN/STN/FSTN...
2. Support characters: 8x2,16x1,16x2,16x4,20x4, ect..
3. Customized for the total module including new size, backlight, color,
4. PCB circuit board. connection mode ect.
5. Different requirment can be met.
