| Display Type: | 16X4 Character | Dots Size(mm): | 0.55(W)X0.55(H) |
|---|---|---|---|
| Module Size With B/L(W X Hx T)(mm): | 87(L)X60W)X13(T) | View Area(mm): | 61.7(L)X25.2(W) |
| Controller&Driver: | St7065 And St7066 | Dots Pitch(mm): | 0.6(W)X0.6(H) |
| Operation Temp.(℃): | -20 To +70 | Storage Temp.(℃): | -30 To +80 |

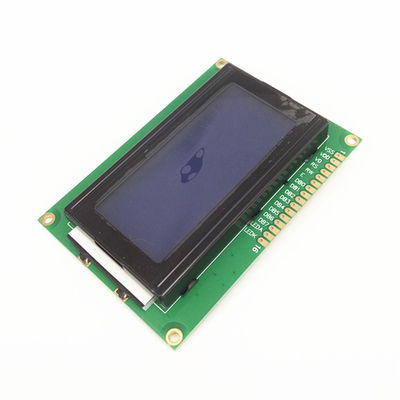

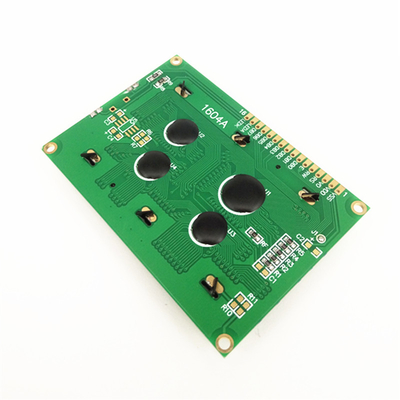

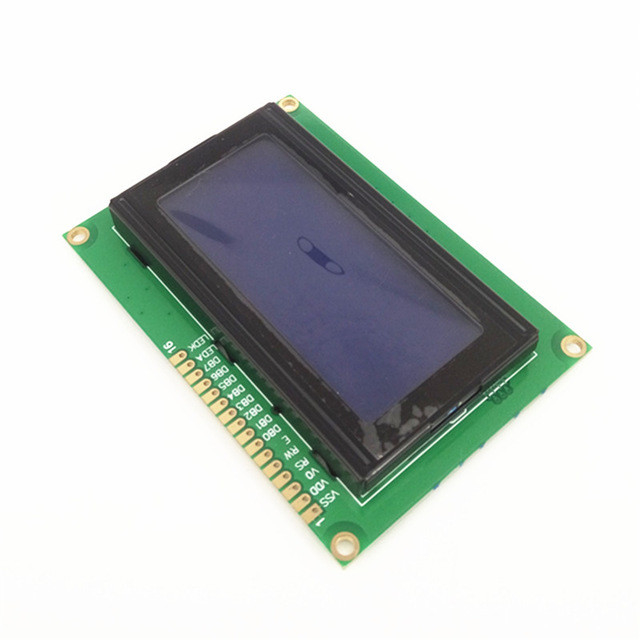

A character screen is a type of LCD screen specifically designed to display characters and text information. It consists of multiple characters, each of which is usually composed of a certain number of pixels to form a recognizable character shape. Character screens are often used in embedded systems, electronic devices, and instruments to display simple text information.The 16x4 character screen is an LCD display that can display 16 columns and 4 rows of characters. This means it can display up to 16 characters simultaneously and has a 4-line text display area. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. Here is the datasheet of our 40x4 character LCD module.
The table contains specific instructions.
| Outline Size(mm) | 87(L)X60W)X13(T) |
| Lcd Type | STN,NEGATIVE(YG),TRANSMISSIVE |
| Display type | 16(characters)×4(line) |
| ViewArea(mm) | 61.7(L)X25.2(W) |
| Dots size(mm) | 0.55(W)X0.55(H) |
| Dots pitch(mm) | 0.6(W)X0.6(H) |
| Character Size(mm) | 2.9(W)x 5.15(H) |
| Driver Condition | LCD Module:1/16Duty,1/5Bias |
| Controller&driver | ST7065 and ST7066 |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
The drawing of 1604 character LCD module
1. Text Display: Character LCD is mainly used to display text information, usually presented in a fixed character size and arrangement.
2. Save energy: Character LCD generally consumes less power than other display technologies, such as LED or color LCD, because it only needs to activate the liquid crystal to display text, without the need for a backlight.
3. High visibility: Character LCDs generally excel in high-light visibility. They are also clearly visible in direct sunlight and are suitable for outdoor applications.
4. Cost-Effectiveness: Due to its simple design and low power consumption, character LCD is generally more affordable than other display technologies and is therefore widely used in cost-sensitive projects.
5. Embedded systems: Character LCDs are often used in embedded systems and small electronic devices, such as smart home control panels, instrument panels, user interfaces in electronic devices, etc.
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. Some common applications are industrial mater, BPG, POS machine,Washing machine, thermometer, calculator, car speedometer, GPS tracker, electric cooker, hair curler, fuel dispenser, watch and so on.
• Professtional team to provide the pre-sales, on-sales and after-sales service.
• OEM&ODM service.
• Drawings and Related procedures service.
• Best Quality with direct factory price.
• Faster reply service within 24 hours.
• One year warranty service.
Q1:Can I get an sample?
-Sure, we provide samples but pls kindly pay some sample fee and delivery fee.
Q2: Can I customized my products?
- Sure, pls send you requirement and detailed information.
Q3: How can I place an order?
-Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q4: How long is the delivery time?
-It depends on your products and service. Generally, it spents 15~30 working days.
Q5: What's the MOQ?
-It depends on the product type. We accept small orders..
