| Display Type: | 16(Characters)x2(Line) | Dots Size(mm): | 0.54(W)X0.60(H) |
|---|---|---|---|
| Dots Pitch(mm): | 0.59(W)X0.65(H) | Character Size(mm): | 2.9(W)X5.15(H) |
| Outline Size(mm): | 80(L)X36(W)X13.0(T) | View Area(mm): | 64.5(L)X14.5(W) |

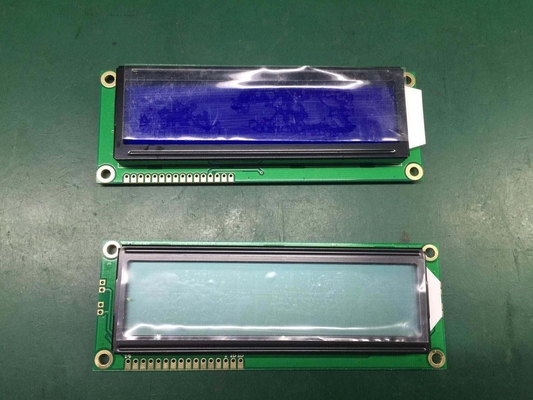

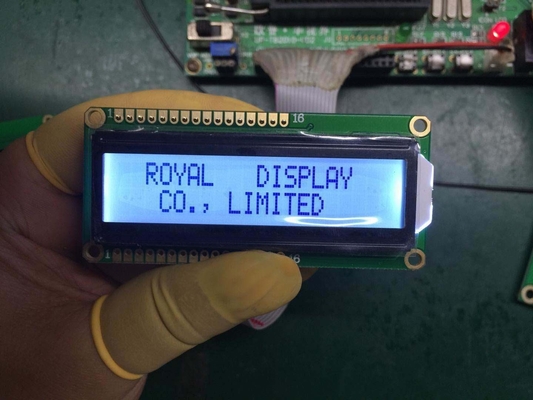

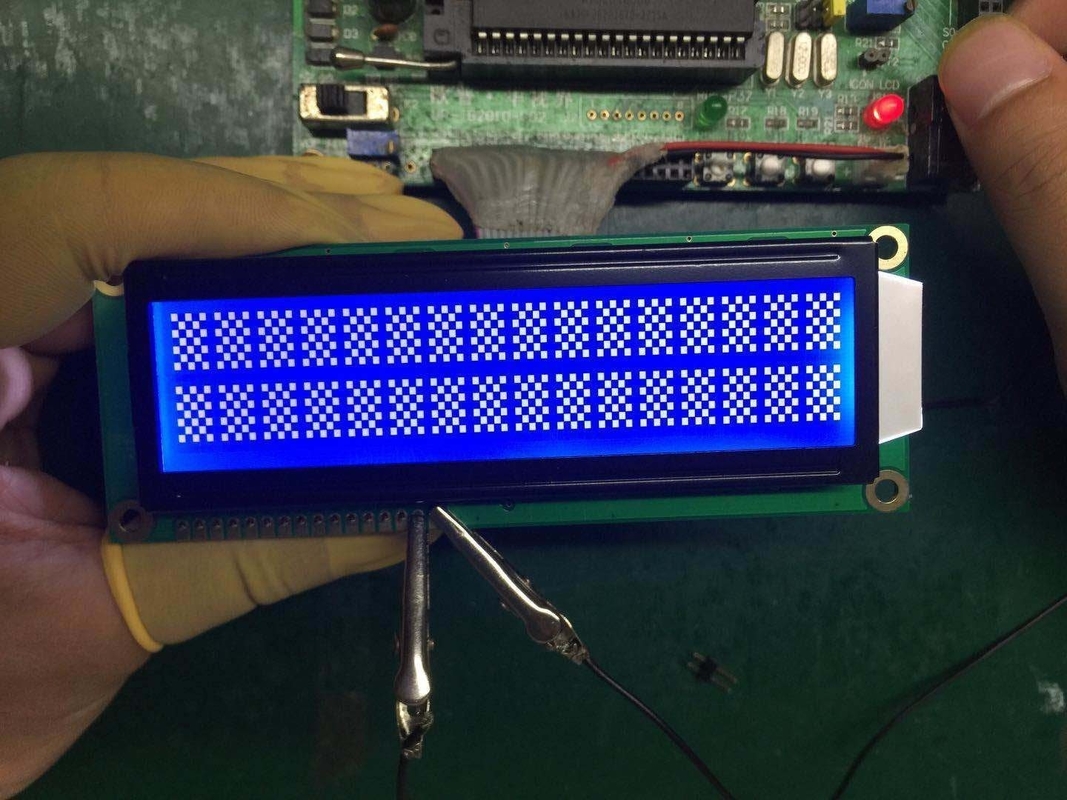

Character LCD is a liquid crystal display technology used in electronic devices that display text and simple icons, usually presented in a fixed character size and arrangement. A 16x2 character LCD refers to a liquid crystal display (LCD) module that can display 16 characters in each of its 2 rows. It is commonly known as a 16x2 character LCD or 16x2 alphanumeric LCD. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. Character screens typically consume less power, making them suitable for power-sensitive devices and systems. They typically use a backlight to provide visibility, and the backlight brightness can be adjusted through controls to save energy. Here is the datasheet of our 16x2 character LCD module.
The table contains specific instructions of 16x2 character LCD Module.
| Outline Size(mm) | 80(L)x36(W)x13.0(T) |
| Lcd Type | STN,NEGATIVE(YG),TRANSMISSIVE |
| Display type | 16(characters)×2(line) |
| ViewArea(mm) | 64.5(L)x14.5(W) |
| Dots size(mm) | 0.54(W)x0.60(H) |
| Dots pitch(mm) | 0.59(W)x0.65(H) |
| Character Size(mm) | 2.9(W)x 5.15(H) |
| Driver Condition | LCD Module:1/16Duty,1/5Bias |
| Controller&driver | AIP31066 |
| View Direction | 6 O'Clock |
| Interface mode | 8-bit MPU interface |
| VDD&VOP (Type) | 5.5V |
| Backlight (Type) | SIDE WHITE |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
The drawing of 2004 character LCD module
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. Some common applications are industrial mater, BPG, POS machine,Washing machine, thermometer, calculator, car speedometer, GPS tracker, electric cooker, hair curler, fuel dispenser, watch and so on.
• Professtional team to provide the pre-sales, on-sales and after-sales service.
• OEM&ODM service.
• Drawings and Related procedures service.
• Best Quality with direct factory price.
• Faster reply service within 24 hours.
• One year warranty service.
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display. More than 90% products are customized products. Also, we can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our professtional team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
