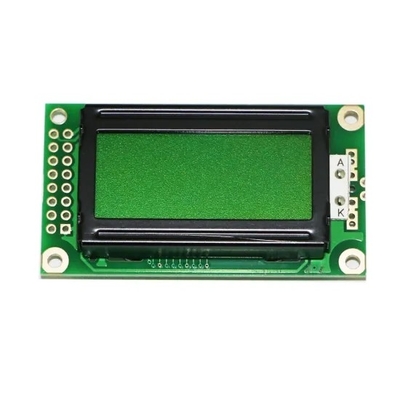

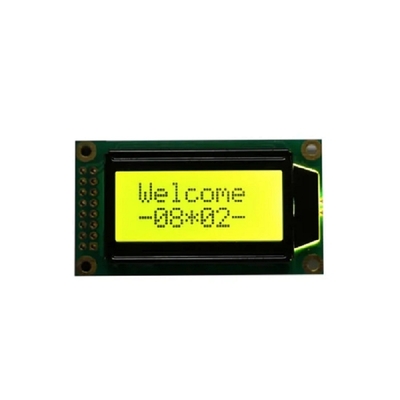

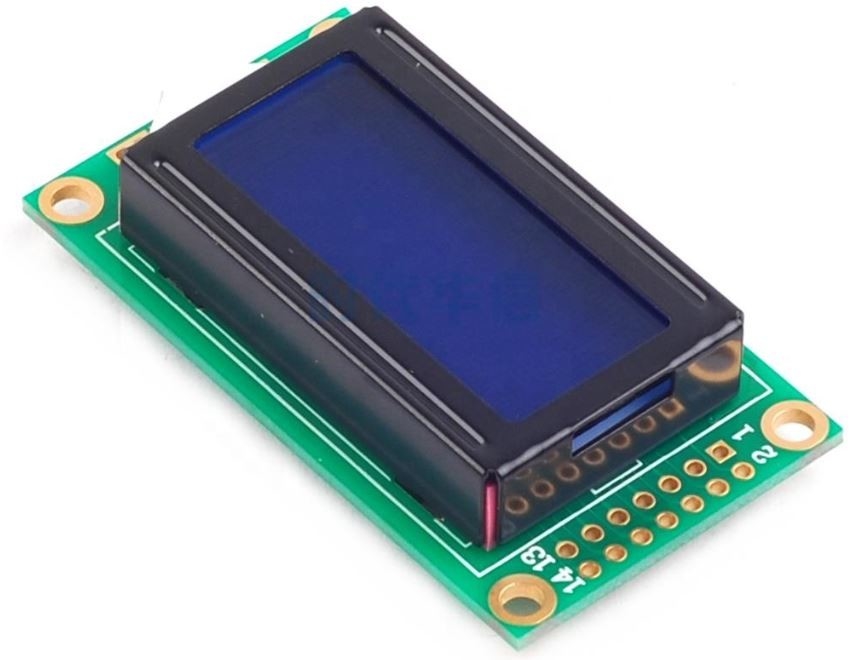

Alphanumeric Character LCD Display Module STN 8x2 Monochrome

Alphanumeric Display Module STN 8x2 Monochrome Character LCD Display Module

Quick Detail of 8x2 Character LCD Module
This 8x2 LCD display module is powered by voltage 5V or negative voltage 3V. Backlight is optional, you can choose module with backlight or without it. There are a lot of combinations for backlight, for example, yellow-green, blue, white, amber, red, and RGB backlight. This 8x2 character monochrome LCD display has built-in IC AIP31066 offering a selection of fonts, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic, etc. Default interface of RYP0802B-Y 8x2 LCD display is 6800; if you require interface such as SPI or I2C, they’re also available, but the IC will be replaced with RW1063.

Specification of Monochrome 8x2 LCD display


Contour Drawing of 0802 Alphanumeric Display Module

Features Of Character LCD Display
LCD character modules are “characteristically” simple display devices known for their very low power consumption and long-term reliability. They are designed to display alpha-numeric characters in preset patterns and do not have the flexibility one may think of when considering an LCD as a computer monitor or television. In most cases, they are small displays only displaying 8 or 16 or 32 characters, utilized for status reports and small level communication.
In many LCD modules, there is no backlight present, meaning it operates in reflective mode. This means that ambient light is required to see the display characters through the use of a reflective element behind the liquid crystal assembly. In other regards, it operates as a backlit LCD, with a polarized light blocking crystal structure enabled by applied voltages.
LCD modules are commonly seen in calculators and other electronic devices where some visual communication is required for reasonable operation. Printers, microwaves, pagers, and digital watches are some other examples. This form of display is also quite common among electronic hobbyist for the cost, efficiency, and ease of operation that they provide.

Character LCD Modules(LCM) Of Royal Display

Royal Display offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Royal Display offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
