STN COB Character 16X2 LCD Display Module English Japanese
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | RYP1602Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| LCD Type: | STN | Display Method: | 1/16duty 1/5bias |
|---|---|---|---|
| Viewing Direction: | 6 O'clock | Outline Dimension: | 80.0X36.0X11.0mm |
| Driver IC: | Aip31066 | Driver Power: | 5V |
| Highlight: | STN lcd display 16x2,COB Character LCD Display Module,16x2 lcd module |
||
Product Description

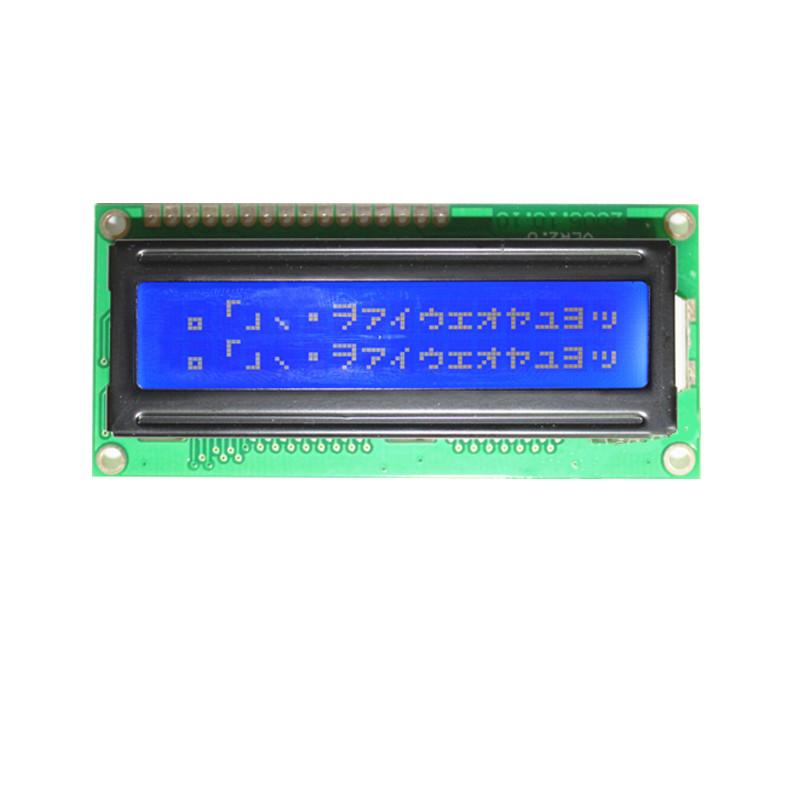

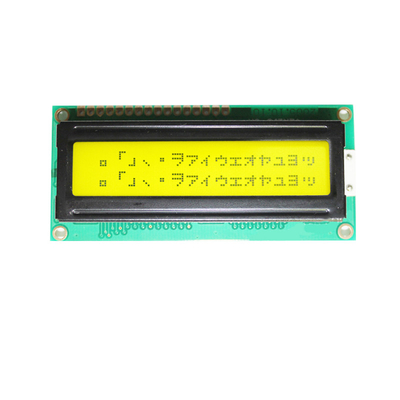

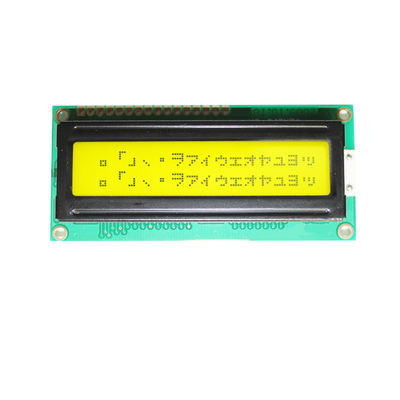

16X2 COB Character LCD Display Small LCD Display Module- English Japanese
PRODUCT DESCRIPTION
1. 16x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 16*2 Character LCD Module 1602 LCD Display |
| LCD type | FSTN STN |
| Model No. | RYP1602A-8 |
| Outline Dimension (mm) | 80.0x36.0x11.0mm |
| Viewing Area (mm) | 64.5x14.5mm |
| Viewing Direction | 6 O' clock |
| Driver IC | AIP31066 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
Q: Can you customize the product? what do you need?
A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
