Product Details:
Payment & Shipping Terms:
|
| Display Type: | Stn Blue, Transmissive, Negative | DOT Format: | 16X2 |
|---|---|---|---|
| Outline (mm): | 122.0(W)*44.0(H)*13.5(D) | Active Area(mm): | 94.7(W)*20.0(H) |
| Backlight Color: | Blue | Power Supply: | 5V |
| IC Package: | COB | Drive IC: | St7066 |
| High Light: | 5.0V Character Negative LCD Module,16X2 STN Negative LCD Module,FSTN Monochrome COB LCD Module |
||
PRODUCT DESCRIPTION
1. 16x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |

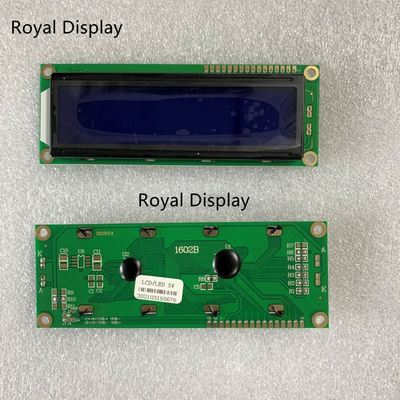

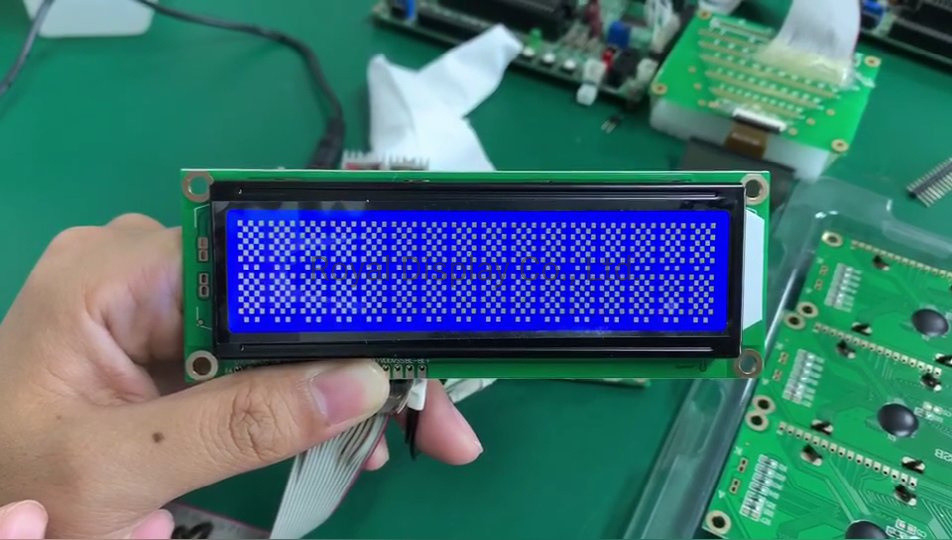

| Product Name | 16X2 Character LCD Module |
| Model No. | RYP1602B |
| Dot Format | 16 X 2 |
| Outline Size(mm) | 122.0(W)*44.0(H)*13.5(D) |
| Active Area(mm) | 94.7(W)*20.0(H) |
| Backlight | Blue |
| Power supply | 5V |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
1. Q: Order process
A:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2. Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3. Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4. Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5. Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed
6. Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
