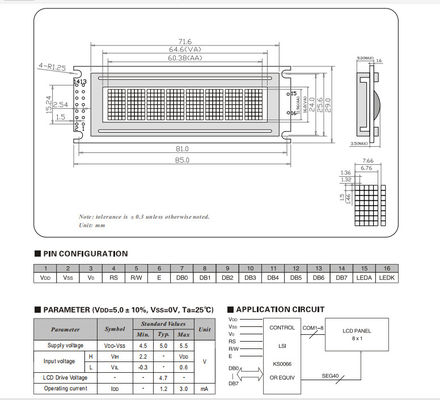

MPU Stn COB LCD Display 8X1 Character FSTN Positive With White LED Backlight
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | RYP0801A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Resolution: | 8X1 | Polarizer: | Transmissive |
|---|---|---|---|
| Outline Size(mm): | 85.0(W)X29.0(H)X11.0(D) | Drive Method: | 1/16 Duty, 1/5 Bias |
| Operation Voltage: | 5V | View Direction: | 12 O'clock/6 O'clock |
| Highlight: | 8X1 Character COB LCD Display,MPU Stn COB LCD Display,FSTN Positive Lcd Character Module |
||
Product Description
8X1 Character Stn Type COB LCD Display Module 0801 with White LED Backlight
PRODUCT DESCRIPTION
1. 8x1 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | STN Character 8X1 LCD Display |
| Model No. | RYP0801A |
| Display Type | STN,NEGATIVE(White),TRANSMISSIVE |
| Interface | 8-bits MPU interface |
| Diver IC | SPLC780D |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
1. Q: Order process
A:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2. Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3. Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4. Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5. Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed
6. Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
