Product Details:
Payment & Shipping Terms:
|
| LCD Display Type: | Stn | Number Of Characters: | 24*2 |
|---|---|---|---|
| Module Size(mm): | 118.0(W)*36.0(H)*12.0(D) | Viewing Area(mm): | 93.5(W)*15.8(H) |
| Supply Volatge Logic: | 5.25V | Supply Voltage Driver: | 7.0V |
| High Light: | FSTN Positive Character LCD Display,24X2 Stn Character LCD Display,3.7 Inch Monochrome LCD Module |
||

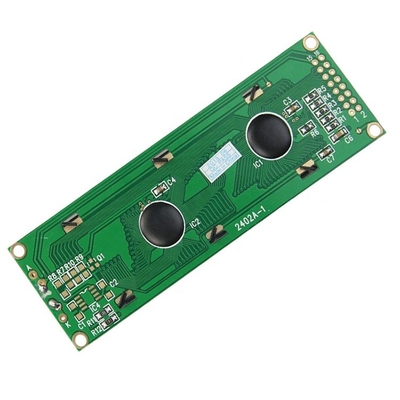

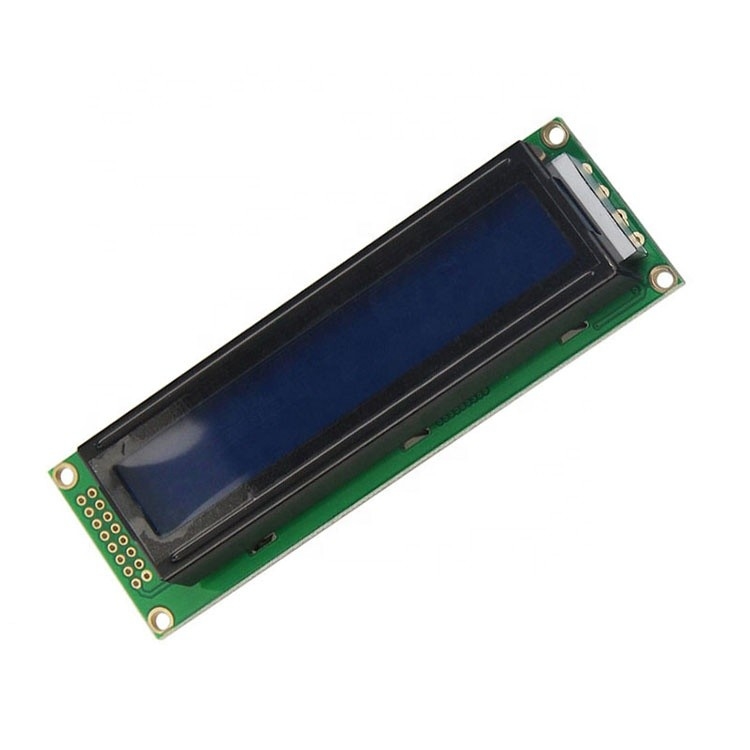

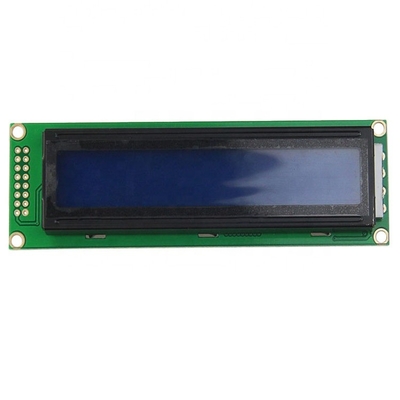

Character LCD Display 24X2 Stn Blue Monochrome 3.7 inch 2402 LCD Display
PRODUCT DESCRIPTION
1. 24x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 24*2 Character LCD Display |
| Model No. | RYP2402A |
| Driver IC | ST7066 ST7065 |
| Dot Pitch(mm) | 2.13(W)*2.29(H) |
| Dot Size(mm) | 1.97(W)*2.13(H) |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
OUR SERVICE ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union.
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7. Warranty: Usually, product warranty for one year.
8. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
FAQ
Q: Can you customize the product? what do you need?
A:The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
