8X1 Character Stn COB LCD Display Module SPLC780 With LED Backlight
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS |
| Model Number: | RYP0801A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 30K/M |
|
Detail Information |
|||
| DOT Format: | 8X1 | Outline (mm): | 60.5*33.0*11.0mm |
|---|---|---|---|
| LCD Type: | Stn/Positive/Yellow Green | Driver IC: | SPLC780/AIP31066 |
| Backlight Color: | LED Yellow Green | Viewing Direction: | 6:00 |
| IC Package: | COB | Operating Temp.: | -20°C~+70°C |
| Storage Temp.: | -30°C~+80°C | ||
| Highlight: | 8X1 Character LCD Display Module,Stn COB LCD Display Module,SPLC780 Positive LCD Display |
||
Product Description

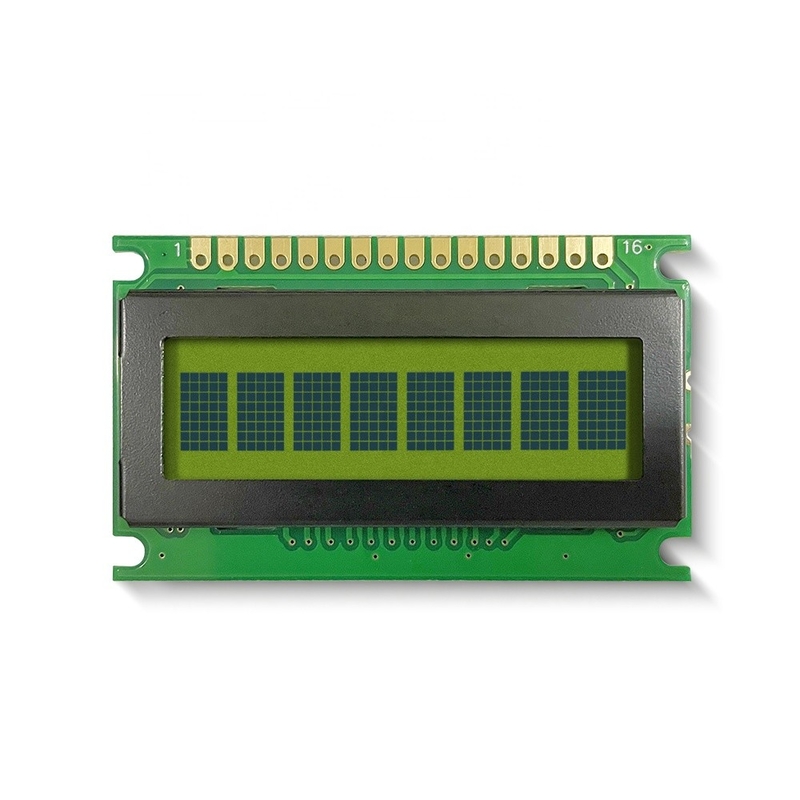

8x1 character STN Type COB LCD display module with yellow green LED backlight
PRODUCT DESCRIPITION
|
Resolution
|
8*1
|
|
Viewing Angle
|
6 O'clock
|
|
Outline Dimension
|
60.5*33.0*11.0mm
|
|
View Area
|
44.0*13.0mm
|
|
Active Area
|
40.83*7.93mm
|
|
Controller
|
SPLC780/AIP31066
|
|
Display mode
|
STN/Positive/Yellow green
|
|
Blacklight
|
LED Yellow green
|
|
Interface
|
8-bit parallel
|
|
Operating Temp
|
-20°C~+70°C
|
|
Storage Temp
|
-30°C~+80°C
|
|
Number of pins
|
16 pin
|
STANDARD CHARACTERS LCD MODULES
MAIN PARAMETERS OF CHARACTER LCD PANEL
| Description | 3.3V Monochromic Transmissive/Transflective/Reflective Character Blue/Green/Gray STN Character LCD Modules |
| Structure | Graphic LCD modules COG(Chip On Glass) COB(Chip On Board) |
| Number of Characters | 8x2, 16x1, 16x2, 16x3, 16x4, 20x2, 20x4, 40x2, 40x4, Customization |
| Display type | VA(NBT/EBN/IBN),TN, HTN, STN, FSTN, FFSTN/DFSTN |
| Polarizer | Transflective, Transmissive, Reflective |
| Background | Gray, White, Yellow-Green, Blue, Black |
| Viewing direction | 6:00, 12:00, 3:00, 9:00, Customization |
| Operating temperature | 0 ºC to 50 ºC, -20 ºC to +70 ºC, -30 ºC to +80 ºC, -30 ºC to +85 ºC, Customization |
| Storage temperature | -10 ºC to +60 ºC, -20 ºC to +70 ºC, -30 ºC to +80 ºC, -40 ºC to +90 ºC, Customization |
| Connector/Connection | Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC) |
| Main driver IC | COG:ST7032I, NT7605, RW1067, ect. COB:ST7066U, RW1067. RW1063 , ect. |
| Main Interface | Parallel interface: 6800, 8080 Serial interface: SPI3, SPI4, I2C |
| Backlight | Without, White, Yellow-Green, Green, Red, RGB, ect. |
| Quality control | Strictly tested one by one to make sure all the goods best quality Each item has been checked and in good condition before shipping |
| Warranty | 12 Months |
| Samples | Available |
| Advantage | Competitive Price, Fast delivery, Excellent after-sales Service |
| Payment method | T/T, Western Union |
| Shipment terms | EX-WORKS Shenzhen/Hongkong |
| Place of Origin | Shenzhen, China |
| Applications | Household, Medical Treatment, Intelligent Control, Industry, Communication Equipment, Financial Equipment, ect. |
