Brand Name: Royal Display Blacklight: Multicolor
Certificate:: RoHS REACH Color: Muti-Color
High Light: FSTN Module LCD LED Backlight, P2.54 Connector LCD LED Backlight, RYB030PW06-A1

Description

Royal and started the product development, production, sales of LED backlight since 2007.

Our backlight widely used in control panel​,dashboard, and other indicators with MONO LCD display

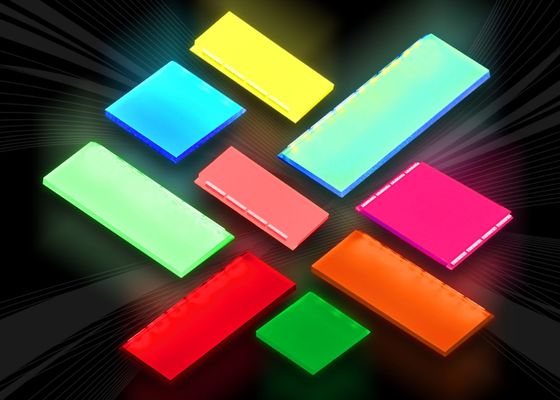

Customizable LED Backlight Multicolor Different Size/Types For Industrial industrial instrument  AC 0




Tooling SMD LED Backlight with a Custom Mold



LED backlight is used to light LCD,so that LCD graphics can be seen clearly on the dark environment or at night.

Usually,The LED backlight that we said was side-LED backlight. Side-LED backlight can be separated into two types: SMD LED backlight and DIP LED backlight (direct insertion probe).



1.LED Backlight size: LED backlight size will be decided by LCD size. Usually,LED backlight should be longer than LCD,because LED backlight needs a 7-8mm covering area to covering LED.

2.LED backlight color:

LED backlight colors just have white,blue,green,red,orange,amber,yellow and so on. All colors are confirmed by LED colors. You can't specify a special color or send us Pantone color, (Maybe there is no this kind of LED)
If LCD need kinds of colors,then you can use RGB LED backlight. But RGB LED color is not very pure.



3.Connector: pins.

Pin pitch 2.54mm,;Pin diameter 0.4mm.
Pins should be inserted into PCB holes ans solder them.





Customizable LED Backlight Multicolor Different Size/Types For Industrial industrial instrument  AC 1




SMD LED backlight specifications:

SMD LED backlight means LEDs are bonded on the PCB.So it is necessary to make PCB mold

1) LED Backlight size: LED backlight size will be decided by LCD size. Usually,LED backlight should be longer than LCD,because LED backlight needs a 5-6mm covering area to covering LED.

2)LED backlight color:
LED backlight colors just have white,blue,green,red,orange,amber,yellow and so on. All colors are confirmed by LED colors. You can't specify a special color or send us Pantone color,then ask us to follow it. (Maybe there is no this kind of LED)
If you need kinds of colors,then you can use RGB LED backlight. But RGB LED color is not very pure.

3)Connector:
Wires connection:solder wires on the PCB
PCB Pin connection:PCB pin should be inserted into PCB and solder it.

4)LED numbers:
If LED backlight size is very big,maybe it is necessary to use 2 LED,3 LED,4,5.........
If LED backlight is too long,we should install LED at both side of backlight.

5)LED voltage:
White LED,blue LED,green LED is 3.0-3.2V
Red LED,orange LED,yellow-green LED etc are 1.9-2.0V

FAQ:

Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.



Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.



Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks



Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material

transportation.



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
