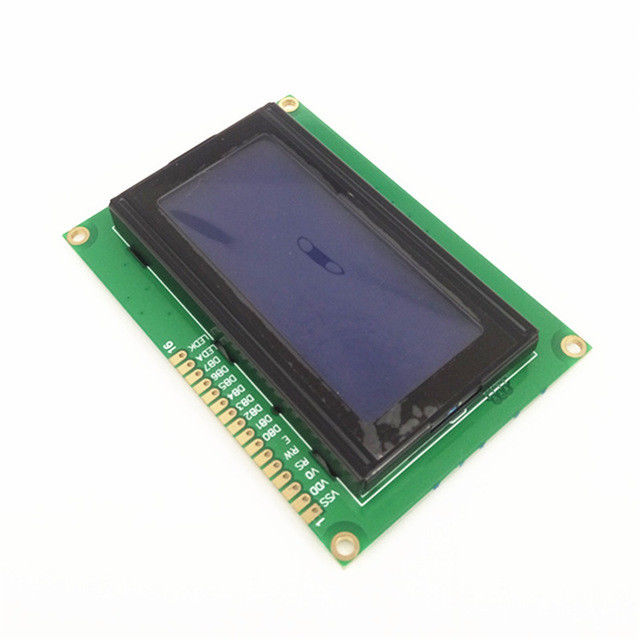

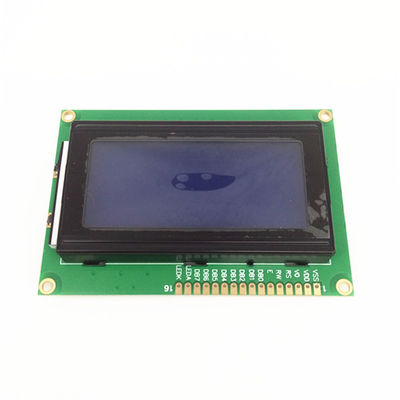

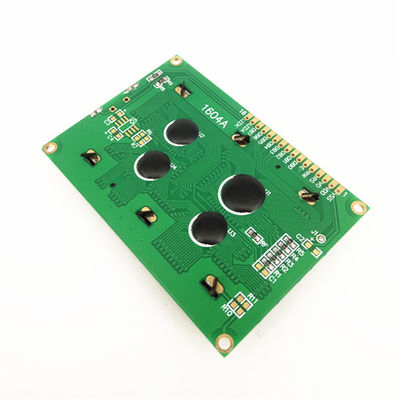

FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module

FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module
FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module

Large Image :  FSTN Positive ST7066U Character LCD Module Stn 16X4 LCD Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP1604A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Product Name: 16x4 LCD Module LCD Type: FSTN-Positive, STN-Gray/Blue
Model No.: RYP1604A Display Format: 16x4dots
Viewing Angle: 6 O' Clock Backlight: LED
Controller: ST7066U Operating Temp: -20º C~70º C
High Light:

FSTN Positive Character LCD Module

,

ST7066U Character LCD Module

,

Stn 16X4 LCD Display Module

Character LCD Stn Blue 1604 LCD Screen 16X4 Display Module


DISPLAY SPECIFICATION



Product model: RYP1604A
Shape size: 86.96*60*13mm
Display area: 62.3*27.6mm
Character number: 16*4
Glass type: yellow green film / blue film / gray film / black film
Backlight types: yellow green light / Blue / White / red / Emerald light
Drive voltage: 3.3V/5V power supply
Working temperature: -20 degree to +70 degree
Storage temperature: -30 degree to +80 degree

Item Description
Product Name 16X4 Character LCD Module
Model No. RYP1604A
Dot Format 16X4
Outline (mm) 87*60
Viewing Area(mm) 61.7*25.2
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray/Blue
Backlight White or Amber LED backlight
Driver IC ST7066U
Power supply 5.0V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC
