Payment & Shipping Terms:

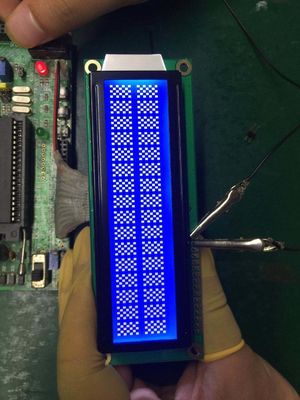

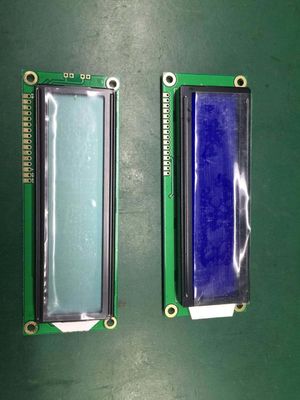

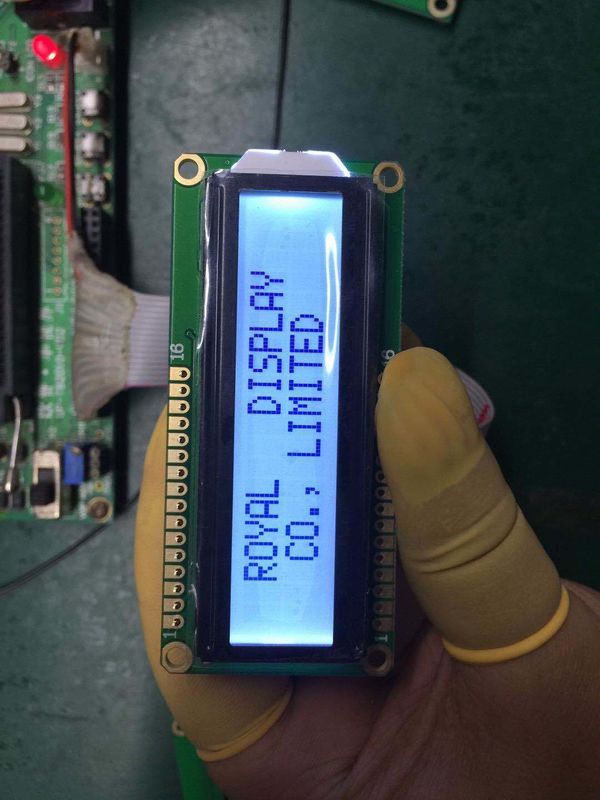

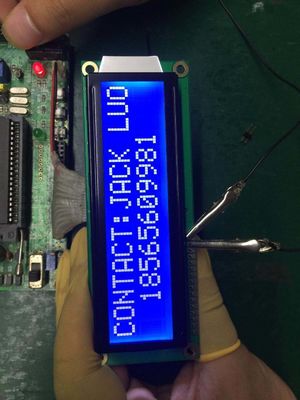

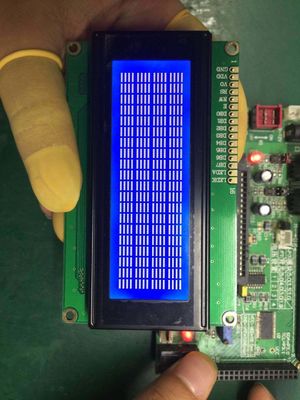

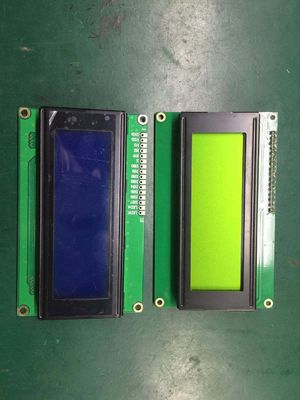

|DOT Format:||16X4||Outline (mm):||87*60|
|Viewing Direction:||6:00||LCD Type:||FSTN-Positive, STN-Gray|
|Driver IC:||St7066u||IC Package:||COB|
|Operating Temp.:||-20º C~70ºC||Storage Temp.:||-30º C~80ºC|
COB Positive LCD Module FSTN,
STN YG Character Lcd Display,
Stn Monochrome Character LCD Display
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
10. Better show effect and wide view angle
Graphic LCD Display
1. Customized according to client's requirement
2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies
3. Available for different modes such as yellow-green, blue and black color.
4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.
Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..
1. Wide variety of off the shelf sizes and resolutions
2. Most products kept in stock and can ship same day
3. Ability to display fully changeable graphics
4. Sunlight readable
5. Low power consumption
6. Fully customizable
R&D AND MANUFACTURING
Custom Made Project Order Flow
Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to firstname.lastname@example.org)
Quotation will be ready within 3 days ( normally 1 day).
2. Counter drawing
We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.
3. Tooling samples
After drawing approval, tooling samples will be finished around 30 days
4. Mass production
After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply situation.
Tag: Lcd Graphic Display Module, Monochrome Graphic Display, Transflective Lcd Display
