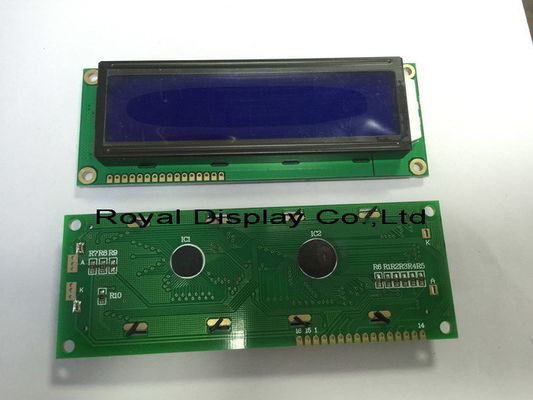

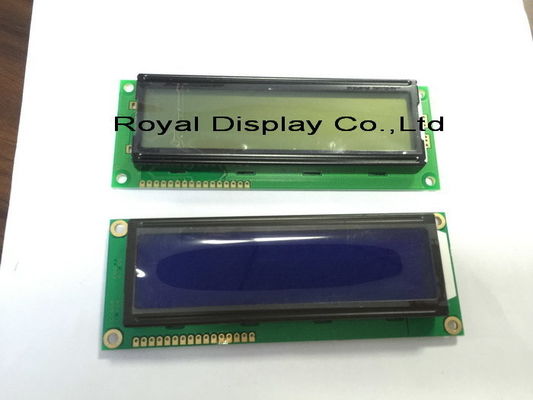

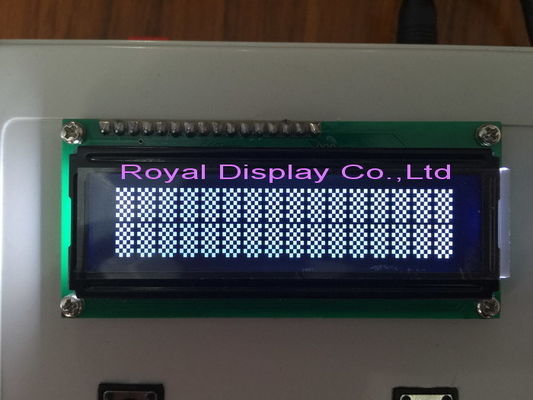

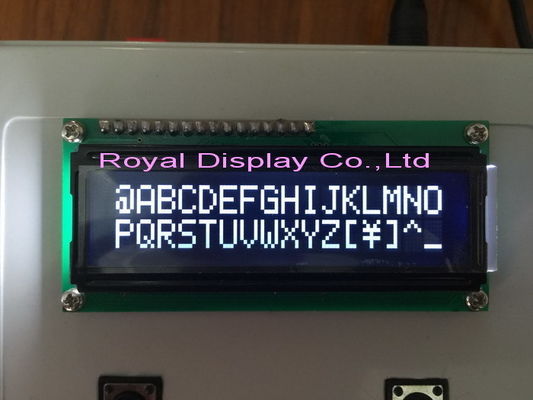

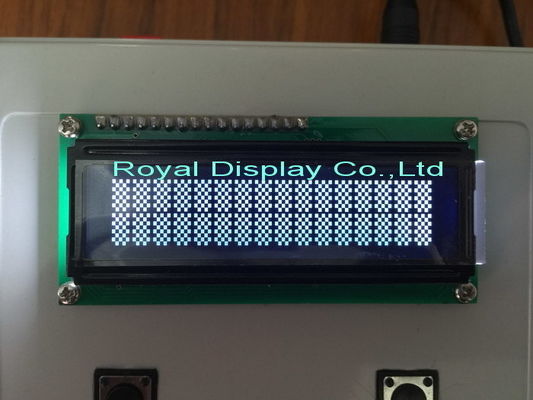

Character 1602 COB 3.3V/5V 16X2 LCD Module Dot-matrix LCD Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RY1602COB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 16X2 | Outline (mm): | 84*44 |
|---|---|---|---|
| Viewing Direction: | 6:00 | Backlight: | White Or Amber LED Backlight |
| LCD Type: | FSTN-Positive, STN-Gray | Driver IC: | SPLC780C |
| IC Package: | COB | Operating Temp.: | -20º C~70ºC |
| Storage Temp.: | -30º C~80ºC | ||
| Highlight: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |
||
Product Description
3.3V/5V 16x2 1602 Character LCD Module
PRODUCT DESCRIPTION
1. 16x2dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 16x2dots Graphic LCD Module |
| Model No. | RY1602COB |
| Dot Format | 16x2 |
| Outline (mm) | 84*44 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | SPLC780C |
| Power supply | 3.3V/5V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
PRODUCT PROCESS
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
FAQ:
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Is it possible to customize the LCD modules?
A: Yes you could let us know the concrete requirements then we will design and confirm with you.
Q: Is it possible we appoint the delivery agent?
A: Yes. Except the couriers we mentioned, we could use others as your requirement.
Q: How long can I get reply?
A: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends
Q: Can we customize the product? What cost will be included?
A: The product can be customized, but the TFT LCD module has different tooling cost, which includes FPC, Touch Screen, Backlight, Bezel, and so on.
Q: Payment Terms?
A: Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS / FEDEX/TNT, or ship the goods to your HK or Shenzhen forwarder.
