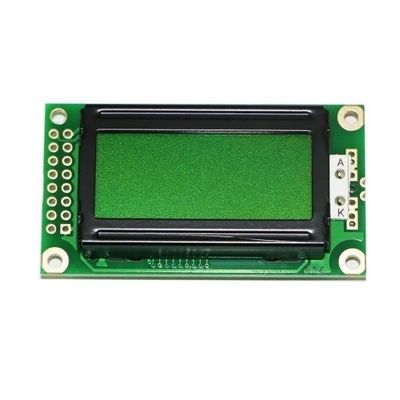

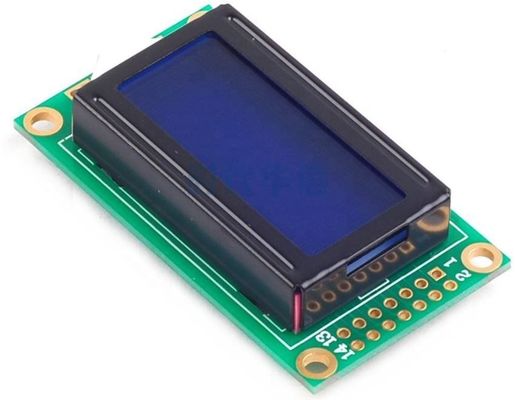

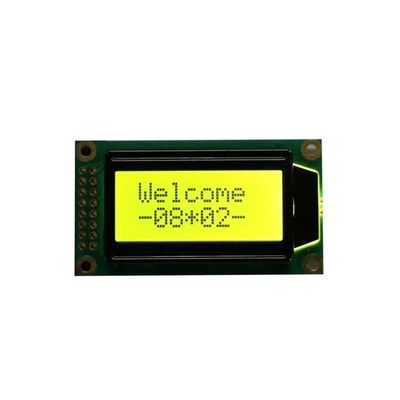

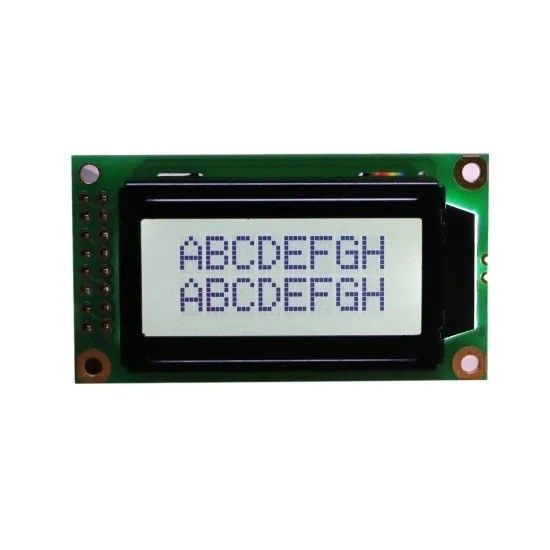

Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYP0802B-Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 8X2 | Outline (mm): | 58*32 |
|---|---|---|---|
| Viewing Direction: | 6:00 | Backlight: | White Or Amber LED Backlight |
| LCD Type: | FSTN-Positive, STN-Gray | Driver IC: | AIP31066 |
| IC Package: | COB | Operating Temp.: | -20º C~70ºC |
| Storage Temp.: | -30º C~80ºC | ||
| Highlight: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |
||
Product Description
Character 0802 with FSTN/Stn Blue/Yg 5V for Industrial Application LCD Display
1. 8X2 Characters
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 8x2 Character LCD Module |
| Model No. | RYP0802A |
| Dot Format | 8X2 |
| Outline (mm) | 58*32 |
| Viewing Area(mm) | 28*16 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | AIP31066 |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
PRODUCT PROCESS
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q: Do you provide Customize product ?A: Yes, we could offer the customize the luminunce/tickness/Cover glass size and any interface.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
