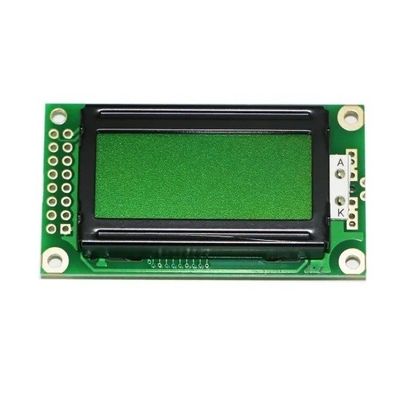

8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module

8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module
8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module 8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module

Large Image :  8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYP0802B-Y
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 8X2 Outline (mm): 58*32
LCD Type: FSTN-Positive, Stn-Gray Backlight Color: White Or Amber LED Backlight
Driver IC: AIP31066 Power Supply: 3.3V
Viewing Direction: 6:00 IC Package: COB
Operating Temp.: -20º C~70ºC Storage Temp.: -30º C~80ºC
High Light:

COB Positive LCD Module FSTN

,

STN YG Character Lcd Display

,

Stn Monochrome Character LCD Display

8x2 STN Yellow-Green Positive Transflective Character LCD Module

1. 8X2 Characters
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option


PRODUCT DESCRIPTION

Item Description
Product Name 8x2 Character LCD Module
Model No. RYP0802A
Dot Format 8X2
Outline (mm) 58*32
Viewing Area(mm) 28*16
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC AIP31066
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC





Character LCM



1>> Customer requirements can be customized,



2>> Available for different modes such as yellow-green, blue and white color.



3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..



4>> Customized for the total module including new size, backlight, color,

PCB circuit board. connection mode ect.

Application: DAB Radios,Stereos, Access Control, The Printer





PRODUCTION PROCESS



8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module 0



8X2 Dots Stn COB Yellow-Green Positive Transflective Character LCD Module 1



ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!





We have an enjoyable experience on our best quality product and satisfied service,

LED professional manufacturer ROYAL DISPLAY with over 10 years experience in led field

we do believe we can become your reliable supplier!
