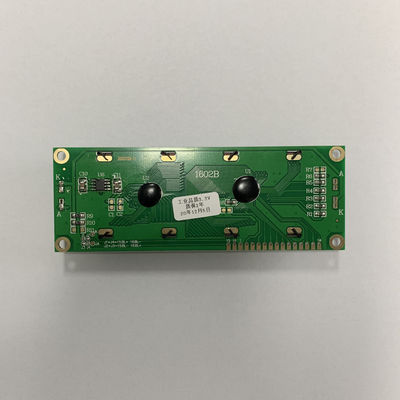

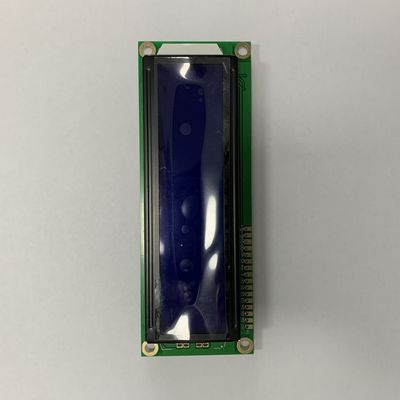

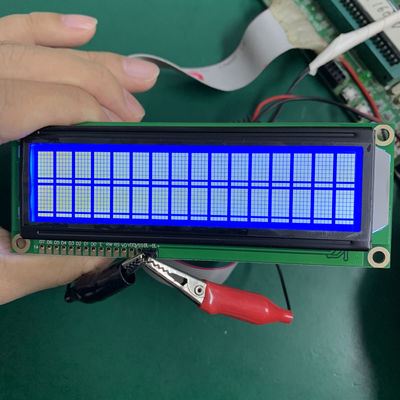

3.3V Parallel Backlight Character LCD Display Mono 16X2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYP1602A-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 130pcs/CTN 7.0Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 500k/Month |
|
Detail Information |
|||
| Product Name: | Yellow Green STN 1602 Character LCD With Y-G Backlight | Model No.: | RYP1602A-8 |
|---|---|---|---|
| LCD Type: | YG Display | LED Backlight: | Yellow Green |
| IC Package: | COB | DOT Format: | 16X2 |
| Interface: | Parallel | Connection: | Pin Header |
| Highlight: | Parallel Backlight Character LCD Display,3.3V Backlight Character LCD Display,Mono 16X2 Lcd Graphic Module |
||
Product Description
Mono 16X2 5V 3.3V Blue Screen Backlight Character LCD Display
PRODUCT DESCRIPTION
1. 16x2dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 16x2dots Graphic LCD Module |
| Model No. | RYP1602A-8 |
| Dot Format | 16x2 |
| Outline (mm) | 84*44 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | SPLC780C |
| Power supply | 3.3V/5V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Outstanding Capabilities & Services
Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.
Product Type
1. LCD Type: TN, HTN, STN, FSTN, VA, COB, COG etc.....
2. Any digitals, Icons, graphic can be customized and designed according to customers' requirements.
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...
5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. The range of operating Temperature: -40~90°C
