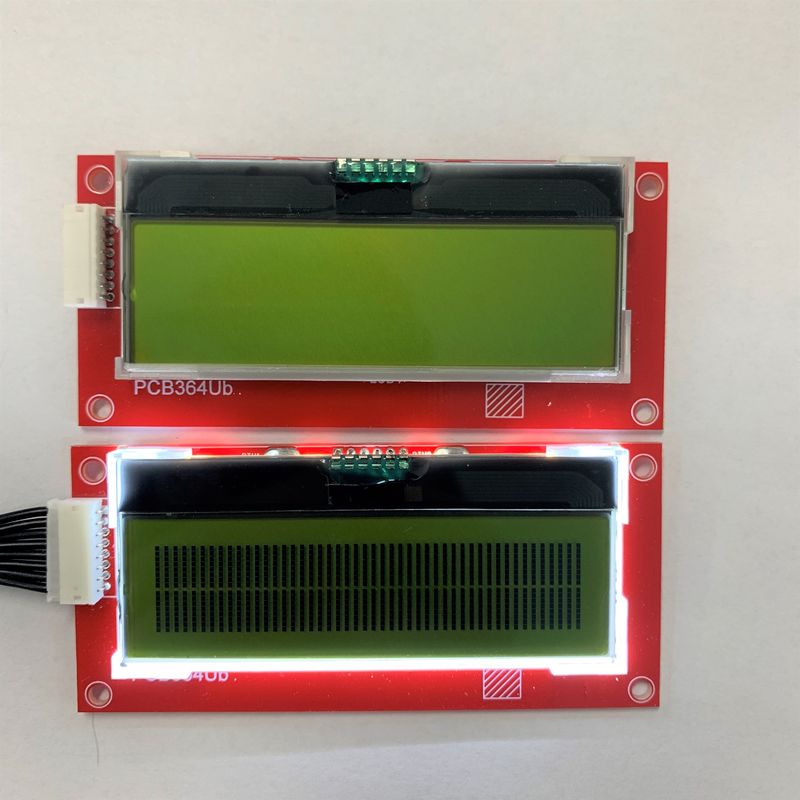

1602dots STN Positive Transflective PCF2119RU Graphic LCD Module

1602dots STN Positive Transflective PCF2119RU Graphic LCD Module
1602dots STN Positive Transflective PCF2119RU Graphic LCD Module 1602dots STN Positive Transflective PCF2119RU Graphic LCD Module

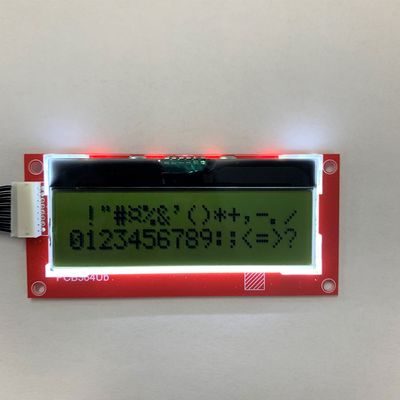

Large Image :  1602dots STN Positive Transflective PCF2119RU Graphic LCD Module

Product Details:
Place of Origin: CHINA
Certification: SGS ROHS
Model Number: RYP1602I-CYTWWN-01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 130pcs/CTN 7.0Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: Yellow Green STN 1602 Character LCD Model No.: RYP1602I-CYTWWN-01
LCD Type: YG Display LED Backlight: Yellow Green
Driver IC: PCF2119RU Viewing Angle: 6 O' Clock
High Light:

PCF2119RU Graphic LCD Module


Transflective Graphic LCD Module


STN LCD Panel Module

1602 STN Yellow Green Positive Transflective PCF2119RU LCD Module
16x2 Character LCD Display | RYP1602I-CYTWWN-01
AKA: 1602 Alphanumeric Display Module
Module size: 81(L) * 37(W)

Driver: PCF2119RU
STN Yellow-Green background with Yellow-Green LED backlight, bottom (or 6:00) viewing angle, Wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit), Transflective (+) polarizer, 5V LCD, 5V LED, RoHS Compliant
STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles.
The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.


 Item Description
 Product Name 16X2 Character LCD Module
 Model No. RYP1602I-CYTWWN-01
 Dot Format 16X2
 Outline (mm) 81*37
 Viewing Area(mm) 61*15.8
 Viewing Angle 6 O' clock
 Backlight White
 Driver IC PCF2119RU
 Power supply 4.5V
 Interface Parallel
 Operating Temp -30º C~70ºC
 Storage Temp -30º C~80ºC


Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!

Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.



1.Q: Are you manufactory or trade company?
We are factory located in Dongguan.
2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
