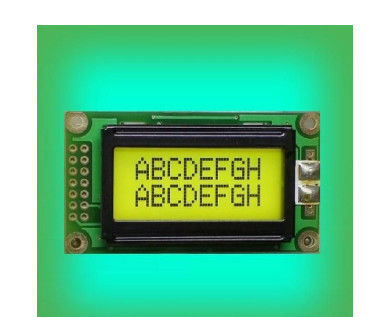

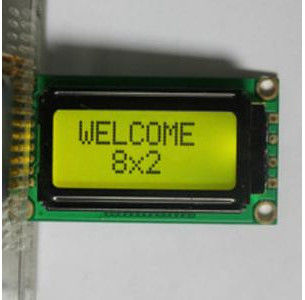

8X2 STN Postive Transflective COB 0802 LCD Module Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, CE, |
| Model Number: | RYP0802B-Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Type: | Character,STN,COB | Display Mode: | Standard 8X2 LCD Character Module,POSITIVE,Transflective |
|---|---|---|---|
| Lcd Type: | STN(YELLOW-GREEN) | Operating Temp: | -20 To 70℃ |
| Storage Temp: | -30 To 80℃ | Interface: | 8 Bit MPU |
| Viewing Direction: | 6 O'clock | ||
| Highlight: | COB 0802 LCD Module Display,STN LCD Module Display,8X2 LCD Character Module |
||
Product Description
8x2 Character LCD Display | RYP0802B-Y
AKA: 0802 Alphanumeric Display Module
Module size: 58(L) * 32(W) * Max 13.8(T)
Driver: AIP31066
| Item name | RYP0802B-Y | Viewing direction | 6 o’clock |
| Operating temperature | -20℃~70℃ | Storage temperature | -30℃~80 ℃ |
| Dot Matrix | 8x2dots | Module Size | 58(L)*32(W)*13.8(T) |
STN Yellow/Green background with Yellow/Green LED backlight, bottom (or 6:00) viewing angle, Wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit), Transflective (+) polarizer, 5V LCD, 5V LED, RoHS Compliant
STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.
DOCUMENTATION
- RYP0802B-Y-Datasheet.pdf
- Certificates from Royal Display.pdf
- ROYAL DISPLAY(SHENZHEN).pdf
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
