FSTN Postive 20X4 I2c Character LCD Display Module

FSTN Postive 20X4 I2c Character LCD Display Module
FSTN Postive 20X4 I2c Character LCD Display Module

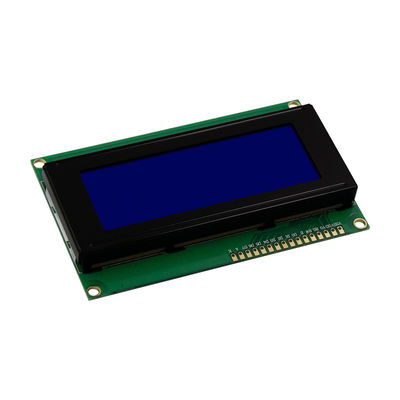

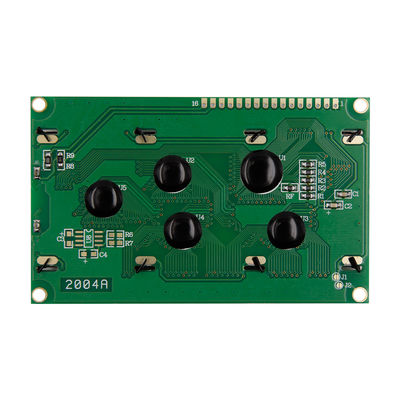

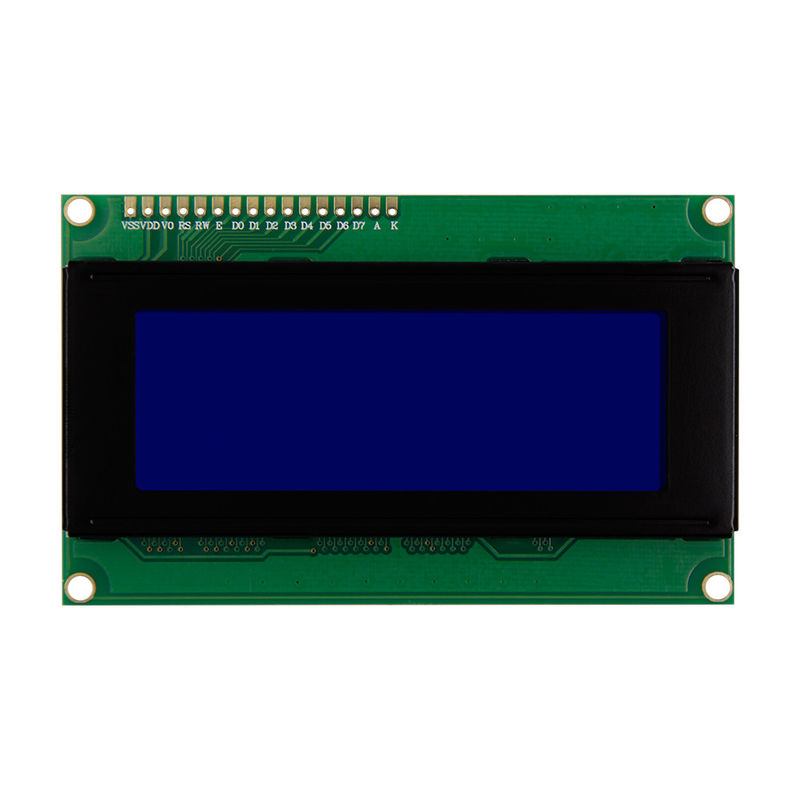

Large Image :  FSTN Postive 20X4 I2c Character LCD Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP2004B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYP2004A Standard Character Moudle 20X4 LCD Model No.: RYP2004B
Dot Format: 20X4 Viewing Angle: 6 O' Clock
LED Backlight: White Operating Temp: -20º C~70º C
LCD Type: FSTN Postive STN Bule
High Light:

20X4 Character LCD Display Module

,

I2c Character LCD Display Module

,

FSTN Postive LCD Character Moudle

LCD Module 2004 Blue Screen Character LCD Display Module with I2c



Alphanumeric LCD Module
1. 20x4 Characters
2. Parallel interface
3. 3.3V & 5V power supply optional
4. STN-YG, STN-Gray & STN-Blue with YG & White LED backlight optional



Item Description
Product Name Alphanumeric LCD Module
Model No. RYP2004B
Dot Format 20 x 4
Outline Dimension(mm) 98 x 60 x 13.7
Assem. Size(mm) 93 x 55
Viewing Area(mm) 76 x 25.2
Pixel Size( mm) 0.55 x 0.55
Viewing Angle 6 O' clock
LCD Type FSTN & STN
Backlight White or Y/G LED backlight
Driver IC ST7063C
Power supply 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



FSTN Postive 20X4 I2c Character LCD Display Module 0

FSTN Postive 20X4 I2c Character LCD Display Module 1FSTN Postive 20X4 I2c Character LCD Display Module 2
