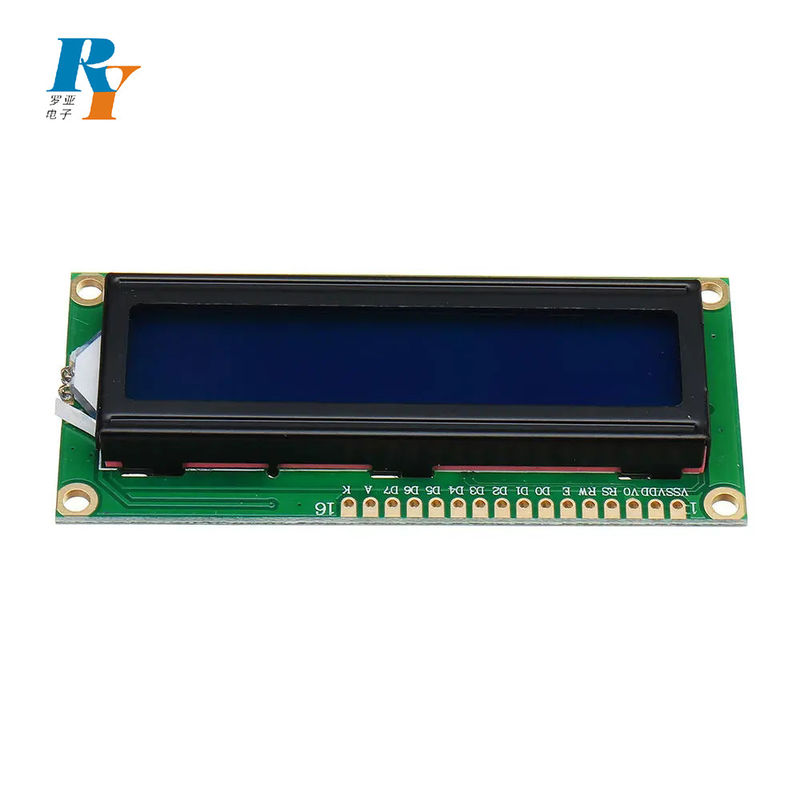

RYP1602A-8 Graphic LCD Module

RYP1602A-8 Graphic LCD Module
RYP1602A-8 Graphic LCD Module RYP1602A-8 Graphic LCD Module

Large Image :  RYP1602A-8 Graphic LCD Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP1602A-8
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 130pcs/CTN 7.0Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: Yellow Green STN 1602 Character LCD With Y-G Backlight Model No.: RYP1602A-8
LCD Type: YG Display LED Backlight: Yellow Green
Driver IC: AIP31066 Viewing Angle: 6 O' Clock
Interface: Parallel
Highlight:

Lcd Graphic Display Module

,

Monochrome Graphic Display



STN Yellow Green Display 1602 Character LCD with Y-G Backlight



 Item  Description
 Product Name 16x2 COB LCD Module
 Model No.  RYP1602A-8
 Dot Format  16 x 2
 Outline Dimension(mm)  80.0 x 36.0MAX
 Assem. Size(mm)  75.0 x 31.0
 Viewing Area(mm)  64.6 x 16.0
 Character Size( mm)  2.95 x 5.55
 Viewing Angle  6 O' clock
 LCD Type  STN-YG
 Backlight  Yellow Green
 Driver IC  AIP31066
 Power supply  3.3V or 5V
 Interface  Parallel
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C



Typical Applications:

Car Radios , Industrial Instruments,meter for measuring electricity , Clusters, Air conditioner,  Price Tag, Printer, Fax, etc



Features:

Wide Operation & Storage temperature range

(Top:-30~+85℃; Tst:-40~+90℃)

Small color change vs. Temperature

Suitable for all kinds of backlight (white/red/blue etc.)

Transmissive negative Mode

Duty Ratio: 1: 1 to 1: 33 (MP)

Super black background

Super high contrast ratio(up to 1000:1)



RYP1602A-8 Graphic LCD Module 0

RYP1602A-8 Graphic LCD Module 1
