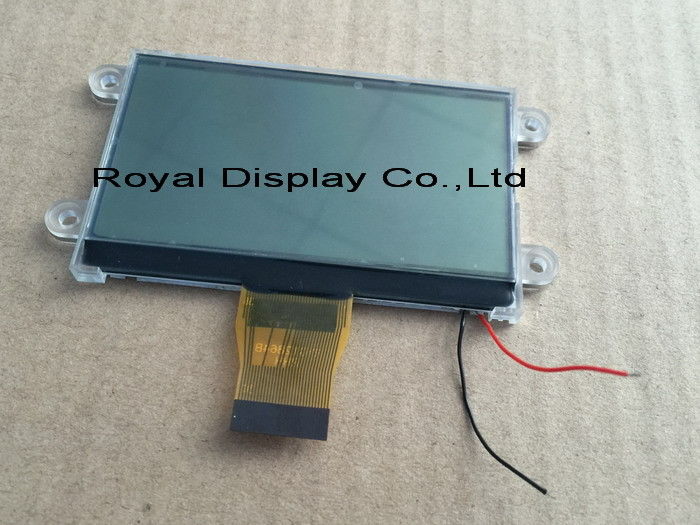

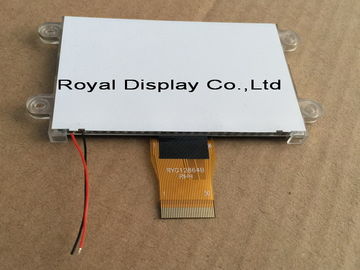

COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply

COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply
COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply

Large Image :  COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG12864A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: COG Graphic LCD Module 128 X 64(RYG12864A) Model No.: RYG12864A
Dot Format: 128x64 Viewing Area(mm): 73.0x40.0
Viewing Angle: 6 O' Clock LED Backlight: White
Driver IC: ST7567 Operating Temp: -20º C~70º C
Storage Temp: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display



COG Graphic LCD Module STN Blue RYG12864A 128*64 dots , 3.3V Power supply



  1. COG Graphic LCD Module
  2. Dots Format , 128x64
  3. Controller , ST7567 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Hand-held Device .
  7. CN1 SYMBOL CN1 SYMBOL
    1 ESD 17 NC
    2 /CS1 18 VO
    3 /RES 19 XVO
    4 A0 20~23 NC
    5 /WR 24 VG
    6 /RD 25~27 NC
    7~14 DB0~DB7 28 C86
    15 VDD 29 P/S
    16

    VSS

    30 ESD

    COG Graphic LCD Module STN Gray RYG12864A 128*64 dots , 3.3V Power supply 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
