RYG320240A Lcd Graphic Display Module 320x240 Dots 100% Replace HANTRONIX HDG320240
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG320240A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Product Name: | Lcd Graphic Display Module | Model: | RYG320240A |
|---|---|---|---|
| Application: | Industrial Application | Brand: | ROYAL DISPLAY |
| Origin: | China | ||
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description

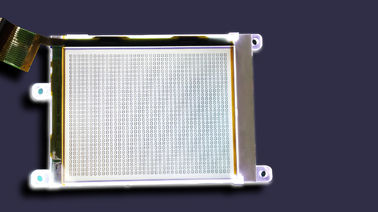

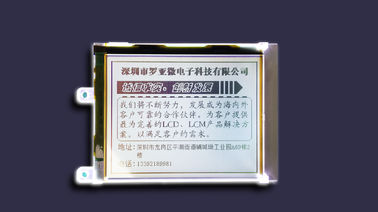

COG Graphic LCD Module For Industrial Application RYP320240A 320x240 Dots 100% replace HANTRONIX HDG320240
1. 320x240 dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-blue, STN-Positive display results as option
| Item | Description |
| Product Name | 320X240 dots Graphic LCD Module |
| Model No. | RYG320240A |
| Dot Format | 320x 240 |
| LCD Type | FSTN-Positive, STN-Blue |
| Outline Dimension(mm) | 88.3x69.1 |
| Viewing Area(mm) | 79.8 x 57.85 |
| Pixel Size( mm) | 0.24 x 0.24 |
| Viewing Angle | 6 O' clock |
| Backlight | White or Y/G LED backlight |
| Controller | NT7701&NT7709 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Wide Operation & Storage temperature range
Duty Ratio: up to 1:240
support gray scale display
support gray scale display
